首頁歐美晶振IQD Crystal|LFXTAL036075BULK

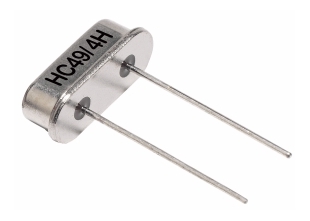

IQD Crystal|LFXTAL036075BULK

產品型號：83548566

晶振頻率：27.12MHz

晶振尺寸：

產品應用： IQD晶振,HC49/4H無源晶振,LFXTAL036075BULK晶振,HC-49S插件晶振,石英晶體諧振器,頻率27.12MHz,負載10pF,頻率容差30ppm,工作溫度-10~60°C,低成本晶振,高性能晶振,無鉛環保晶振,數碼產品晶振,儲存卡晶振,電子鍵盤晶振,...

IQD Crystal|LFXTAL036075BULK,IQD晶振,HC49/4H無源晶振,LFXTAL036075BULK晶振,HC-49S插件晶振,石英晶體諧振器,頻率27.12MHz,負載10pF,頻率容差30ppm,工作溫度-10~60°C,尺寸11.05×4.7mm,低成本晶振,高性能晶振,無鉛環保晶振,數碼產品晶振,儲存卡晶振,電子鍵盤晶振,攝像機晶振.

IQD Crystal|LFXTAL036075BULK特點：
-工業標準鉛封裝
-電阻焊接，在惰性氣體中密封，引線上的玻璃與金屬密封

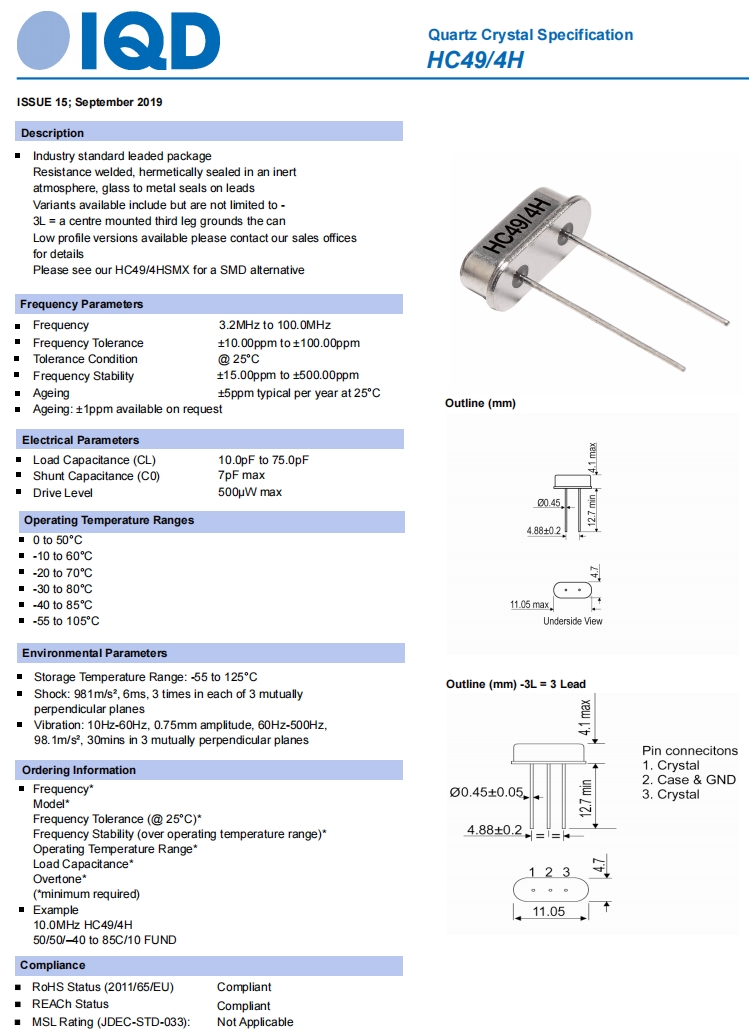

IQD Crystal|LFXTAL036075BULK規格表

Model Product

HC49/4H

frequency 27.12MHz

Frequency Tolerance ±30.00ppm

Tolerance Condition

@ 25°C±2°C

Frequency Stability
±50.00ppm

operating temperature range -10 to +60°C

Ageing
±5ppm typical per year@25°C

Load Capacitance 10pF

Shunt Capacitance 7pF max

Drive Level 500µW max

ESR 40Ω max

Storage Temperature Range

-55 to 125°C

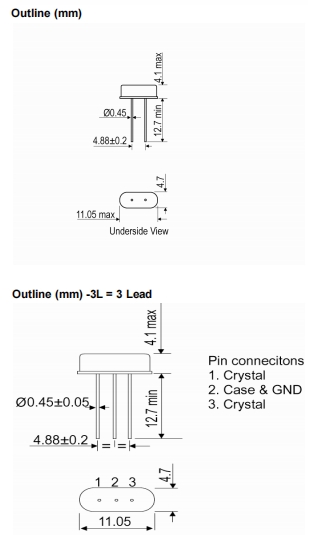

IQD Crystal|LFXTAL036075BULK尺寸圖

Mfr Part Series Frequency Frequency Tolerance Load Capacitance Operating Temperature

LFXTAL003000 85SMX 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C

LFXTAL069395RL3K CFPX-218 16.384 MHz ±20ppm 10pF -40°C ~ 85°C

LFXTAL009678 CFPX-217 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C

LFXTAL050789REEL IQXC-25 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C

LFXTAL055299REEL CFPX-180 25 MHz ±20ppm 18pF -40°C ~ 85°C

LFXTAL053099REEL CFPX-180 27.12 MHz ±10ppm 10pF -20°C ~ 70°C

LFXTAL055663REEL CFPX-104 8 MHz ±20ppm 18pF -40°C ~ 85°C

LFXTAL026392REEL 12SMX-B 16 MHz ±30ppm 16pF -20°C ~ 70°C

LFXTAL011301REEL HC49/4HSMX 8 MHz ±30ppm 30pF -10°C ~ 60°C

LFXTAL029370REEL HC49/4HSMX 16 MHz ±30ppm 18pF -20°C ~ 70°C

LFXTAL016788REEL HC49/4HSMX 6 MHz ±30ppm 30pF -10°C ~ 60°C

LFXTAL002995BULK WATCH 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C

LFXTAL002997BULK WATCH 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C

LFXTAL002996BULK WATCH 32.768 kHz ±15ppm 12.5pF -40°C ~ 85°C

LFXTAL025159REEL CFPX-56 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C

LFXTAL003181REEL HC49/4HSMX 20 MHz ±30ppm 16pF -10°C ~ 60°C

LFXTAL003166REEL HC49/4HSMX 10 MHz ±30ppm 16pF -10°C ~ 60°C

LFXTAL029914REEL HC49/4HSMX 8 MHz ±30ppm 16pF -40°C ~ 85°C

LFXTAL003151REEL HC49/4HSMX 8 MHz ±30ppm 16pF -10°C ~ 60°C

LFXTAL003237REEL HC49/4HSMX 16 MHz ±30ppm 16pF -10°C ~ 60°C

LFXTAL014219BULK WATCH 32.768 kHz ±20ppm 6pF -40°C ~ 85°C

LFXTAL069494REEL IQXC-42 25 MHz ±15ppm 10pF -40°C ~ 85°C

LFXTAL069383REEL CFPX-218 24 MHz ±20ppm 10pF -40°C ~ 85°C

LFXTAL035264REEL CFPX-180 16 MHz ±50ppm 16pF -10°C ~ 60°C

LFXTAL069944REEL CFPX-180 12 MHz ±20ppm 15pF -40°C ~ 85°C

LFXTAL035268REEL CFPX-180 25 MHz ±50ppm 16pF -10°C ~ 60°C

LFXTAL056140REEL IQXC-180 AUTO 24 MHz ±50ppm 8pF -40°C ~ 125°C

LFXTAL069526REEL IQXC-26 32 MHz ±15ppm 8pF -20°C ~ 70°C

LFXTAL084885 IQXC-217 32.768 kHz ±20ppm 6pF -

LFXTAL036075BULK HC49/4H 27.12 MHz ±30ppm 10pF -10°C ~ 60°C

LFXTAL027945BULK HC49/4H 16 MHz ±30ppm 22pF -10°C ~ 60°C

LFXTAL071268REEL CFPX-218 AUTO 16 MHz ±10ppm 10pF -40°C ~ 125°C

LFXTAL061627REEL CFPX-104 8 MHz ±20ppm 16pF -40°C ~ 85°C

LFXTAL055901REEL CFPX-104 8 MHz ±20ppm 18pF -20°C ~ 70°C

LFXTAL059158REEL CFPX-104 8 MHz ±30ppm 16pF -40°C ~ 85°C

LFXTAL062558REEL IQXC-25 32.768 kHz ±10ppm 9pF -40°C ~ 85°C

LFXTAL026384REEL 12SMX-B 12 MHz ±30ppm 16pF -20°C ~ 70°C

LFXTAL026394REEL 12SMX-B 20 MHz ±30ppm 16pF -20°C ~ 70°C

LFXTAL056516REEL 12SMX-B 8 MHz ±30ppm 12pF -20°C ~ 70°C

LFXTAL026380REEL 12SMX-B 8 MHz ±30ppm 16pF -20°C ~ 70°C

LFXTAL055663BULK CFPX-104 8 MHz ±20ppm 18pF -40°C ~ 85°C

LFXTAL003033BULK HC49 1.8432 MHz ±20ppm 30pF -10°C ~ 60°C

LFXTAL020423REEL HC49/4HSMX 8 MHz ±30ppm 18pF -20°C ~ 70°C

LFXTAL024940REEL HC49/4HSMX 4 MHz ±30ppm 18pF -20°C ~ 70°C

LFXTAL026900REEL HC49/4HSMX 6 MHz ±20ppm 16pF -10°C ~ 60°C

LFXTAL030798REEL HC49/4HSMX 3.6864 MHz ±30ppm 16pF -40°C ~ 85°C

LFXTAL082071RL3K CFPX-180 16 MHz ±10ppm 8pF -40°C ~ 85°C

LFXTAL082069RL3K CFPX-180 12 MHz ±10ppm 8pF -40°C ~ 85°C

LFXTAL058637RL3K CFPX-180 25 MHz ±30ppm 12pF -40°C ~ 85°C

LFXTAL059627REEL IQXC-42 38.4 MHz ±15ppm 10pF -40°C ~ 85°C

LFXTAL082135CUTT IQXC-42 48 MHz ±10ppm 8pF -40°C ~ 85°C

LFXTAL063334REEL CFPX-218 25 MHz ±20ppm 10pF -40°C ~ 85°C

LFXTAL055474REEL CFPX-180 25 MHz ±50ppm 16pF -40°C ~ 85°C

LFXTAL059648REEL CFPX-180 40 MHz ±20ppm 18pF -40°C ~ 85°C

LFXTAL072604REEL CFPX-180 25 MHz ±10ppm 8pF -40°C ~ 85°C

LFXTAL069882REEL CFPX-180 12 MHz ±30ppm 10pF -40°C ~ 125°C

LFXTAL070065REEL CFPX-180 24 MHz ±10ppm 9pF -40°C ~ 85°C

LFXTAL055293REEL CFPX-180 14.7456 MHz ±50ppm 18pF -40°C ~ 85°C

LFXTAL009650REEL CFPX-180 16 MHz ±10ppm 16pF -40°C ~ 85°C
