- 產品型號：97167235
- 晶振頻率：8MHz
- 晶振尺寸：
- 產品應用： 歐美進口晶振,IQD晶振,HC49/4HSMX無源晶振,LFXTAL020423REEL晶振,SMD晶體,HC-49S貼片晶振,石英晶體諧振器,頻率8MHz,負載18pF,頻率容差30ppm,工作溫度-20~70°C,尺寸11.4×4.9mm,高可靠性晶振,低電阻晶振,低老化晶振,家...
-

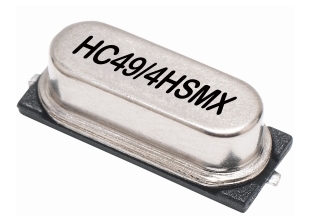

LFXTAL020423REEL|IQD Crystal
LFXTAL020423REEL|IQD Crystal,歐美進口晶振,IQD晶振,HC49/4HSMX無源晶振,LFXTAL020423REEL晶振,SMD晶體,HC-49S貼片晶振,石英晶體諧振器,頻率8MHz,負載18pF,頻率容差30ppm,工作溫度-20~70°C,尺寸11.4×4.9mm,高可靠性晶振,低電阻晶振,低老化晶振,家用電視機頂盒晶振,智能手表晶振,電子體重秤晶振,家用電器晶振.
LFXTAL020423REEL|IQD Crystal特點：
-工業標準低成本SMD版本的HC49/4H晶體
-電阻焊接，在惰性氣體中密封，引線上的玻璃與金屬密封
-工業標準低成本SMD版本的HC49/4H晶體
-電阻焊接，在惰性氣體中密封，引線上的玻璃與金屬密封

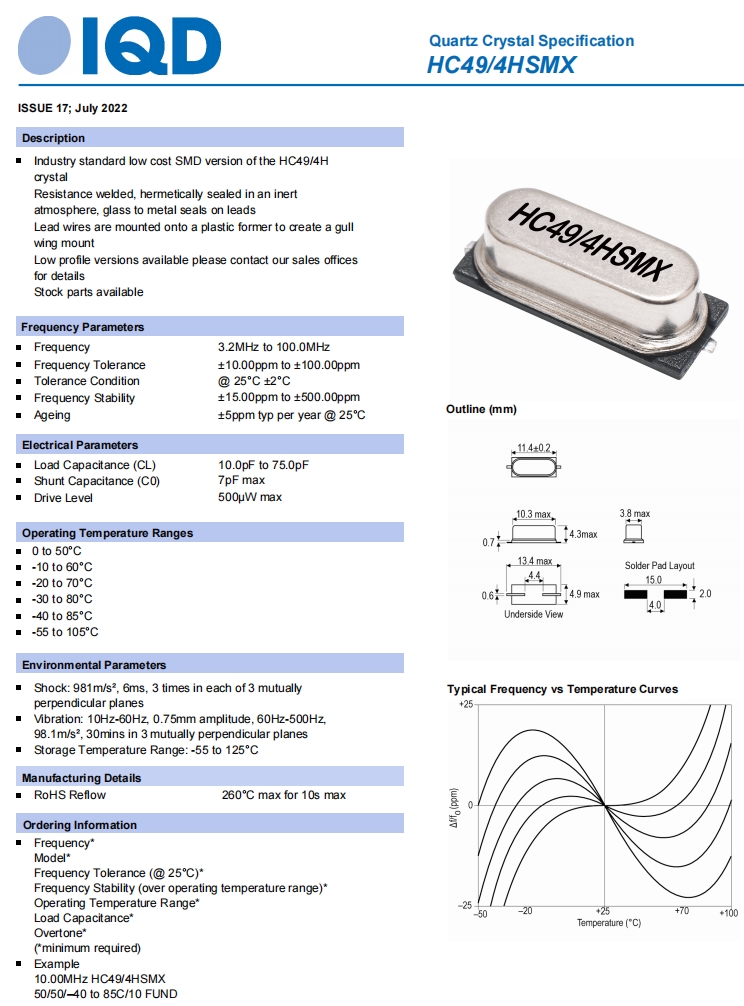

LFXTAL020423REEL|IQD Crystal規格表
| Model | Product | |
| HC49/4HSMX | ||
| frequency | 8MHz | |
| Frequency Tolerance | ±30.00ppm | |
|
Tolerance Condition
|
@ 25°C±2°C
|
|
|
Frequency Stability
|
±50.00ppm | |
| operating temperature range | -20 to +70°C | |
| Ageing |
±5ppm typical per year@25°C
|
|
| Load Capacitance | 18pF | |
| Shunt Capacitance | 7pF max | |
| Drive Level | 500µW max | |
| ESR | 40Ω max | |
|
Storage Temperature Range
|
-55 to 125°C
|
|
.jpg)

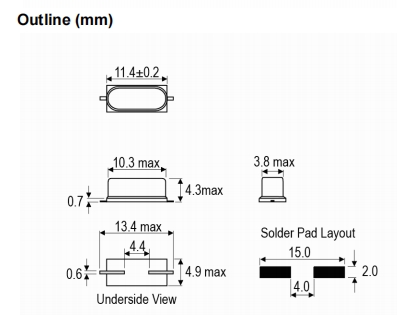

LFXTAL020423REEL|IQD Crystal尺寸圖
| Mfr Part | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
| LFXTAL003000 | 85SMX | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| LFXTAL069395RL3K | CFPX-218 | 16.384 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
| LFXTAL009678 | CFPX-217 | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| LFXTAL050789REEL | IQXC-25 | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| LFXTAL055299REEL | CFPX-180 | 25 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
| LFXTAL053099REEL | CFPX-180 | 27.12 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
| LFXTAL055663REEL | CFPX-104 | 8 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
| LFXTAL026392REEL | 12SMX-B | 16 MHz | ±30ppm | 16pF | -20°C ~ 70°C |
| LFXTAL011301REEL | HC49/4HSMX | 8 MHz | ±30ppm | 30pF | -10°C ~ 60°C |
| LFXTAL029370REEL | HC49/4HSMX | 16 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| LFXTAL016788REEL | HC49/4HSMX | 6 MHz | ±30ppm | 30pF | -10°C ~ 60°C |
| LFXTAL002995BULK | WATCH | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| LFXTAL002997BULK | WATCH | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| LFXTAL002996BULK | WATCH | 32.768 kHz | ±15ppm | 12.5pF | -40°C ~ 85°C |
| LFXTAL025159REEL | CFPX-56 | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| LFXTAL003181REEL | HC49/4HSMX | 20 MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| LFXTAL003166REEL | HC49/4HSMX | 10 MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| LFXTAL029914REEL | HC49/4HSMX | 8 MHz | ±30ppm | 16pF | -40°C ~ 85°C |
| LFXTAL003151REEL | HC49/4HSMX | 8 MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| LFXTAL003237REEL | HC49/4HSMX | 16 MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| LFXTAL014219BULK | WATCH | 32.768 kHz | ±20ppm | 6pF | -40°C ~ 85°C |
| LFXTAL069494REEL | IQXC-42 | 25 MHz | ±15ppm | 10pF | -40°C ~ 85°C |
| LFXTAL069383REEL | CFPX-218 | 24 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
| LFXTAL035264REEL | CFPX-180 | 16 MHz | ±50ppm | 16pF | -10°C ~ 60°C |
| LFXTAL069944REEL | CFPX-180 | 12 MHz | ±20ppm | 15pF | -40°C ~ 85°C |
| LFXTAL035268REEL | CFPX-180 | 25 MHz | ±50ppm | 16pF | -10°C ~ 60°C |
| LFXTAL056140REEL | IQXC-180 AUTO | 24 MHz | ±50ppm | 8pF | -40°C ~ 125°C |
| LFXTAL069526REEL | IQXC-26 | 32 MHz | ±15ppm | 8pF | -20°C ~ 70°C |
| LFXTAL084885 | IQXC-217 | 32.768 kHz | ±20ppm | 6pF | - |
| LFXTAL036075BULK | HC49/4H | 27.12 MHz | ±30ppm | 10pF | -10°C ~ 60°C |
| LFXTAL027945BULK | HC49/4H | 16 MHz | ±30ppm | 22pF | -10°C ~ 60°C |
| LFXTAL071268REEL | CFPX-218 AUTO | 16 MHz | ±10ppm | 10pF | -40°C ~ 125°C |
| LFXTAL061627REEL | CFPX-104 | 8 MHz | ±20ppm | 16pF | -40°C ~ 85°C |
| LFXTAL055901REEL | CFPX-104 | 8 MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| LFXTAL059158REEL | CFPX-104 | 8 MHz | ±30ppm | 16pF | -40°C ~ 85°C |
| LFXTAL062558REEL | IQXC-25 | 32.768 kHz | ±10ppm | 9pF | -40°C ~ 85°C |
| LFXTAL026384REEL | 12SMX-B | 12 MHz | ±30ppm | 16pF | -20°C ~ 70°C |
| LFXTAL026394REEL | 12SMX-B | 20 MHz | ±30ppm | 16pF | -20°C ~ 70°C |
| LFXTAL056516REEL | 12SMX-B | 8 MHz | ±30ppm | 12pF | -20°C ~ 70°C |
| LFXTAL026380REEL | 12SMX-B | 8 MHz | ±30ppm | 16pF | -20°C ~ 70°C |
| LFXTAL055663BULK | CFPX-104 | 8 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
| LFXTAL003033BULK | HC49 | 1.8432 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
| LFXTAL020423REEL | HC49/4HSMX | 8 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| LFXTAL024940REEL | HC49/4HSMX | 4 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| LFXTAL026900REEL | HC49/4HSMX | 6 MHz | ±20ppm | 16pF | -10°C ~ 60°C |
| LFXTAL030798REEL | HC49/4HSMX | 3.6864 MHz | ±30ppm | 16pF | -40°C ~ 85°C |
| LFXTAL082071RL3K | CFPX-180 | 16 MHz | ±10ppm | 8pF | -40°C ~ 85°C |
| LFXTAL082069RL3K | CFPX-180 | 12 MHz | ±10ppm | 8pF | -40°C ~ 85°C |
| LFXTAL058637RL3K | CFPX-180 | 25 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
| LFXTAL059627REEL | IQXC-42 | 38.4 MHz | ±15ppm | 10pF | -40°C ~ 85°C |
| LFXTAL082135CUTT | IQXC-42 | 48 MHz | ±10ppm | 8pF | -40°C ~ 85°C |
| LFXTAL063334REEL | CFPX-218 | 25 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
| LFXTAL055474REEL | CFPX-180 | 25 MHz | ±50ppm | 16pF | -40°C ~ 85°C |
| LFXTAL059648REEL | CFPX-180 | 40 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
| LFXTAL072604REEL | CFPX-180 | 25 MHz | ±10ppm | 8pF | -40°C ~ 85°C |
| LFXTAL069882REEL | CFPX-180 | 12 MHz | ±30ppm | 10pF | -40°C ~ 125°C |
| LFXTAL070065REEL | CFPX-180 | 24 MHz | ±10ppm | 9pF | -40°C ~ 85°C |
| LFXTAL055293REEL | CFPX-180 | 14.7456 MHz | ±50ppm | 18pF | -40°C ~ 85°C |
| LFXTAL009650REEL | CFPX-180 | 16 MHz | ±10ppm | 16pF |
-40°C ~ 85°C |
