- 產品型號：18743154
- 晶振頻率：16.384MHz
- 晶振尺寸：3.2*2.5*0.9mm
- 產品應用： 歐美晶振,IQD晶振,IQXC-180AUTO進口晶振,LFXTAL071747REEL晶振,石英晶體,四腳貼片晶振,晶體諧振器,無源晶振,3225mm晶振,頻率16.384MHz,負載8pF,頻率容差30ppm,工作溫度-40~85°C,小體積晶振,耐高溫晶振,抗沖擊晶振,GP...
-

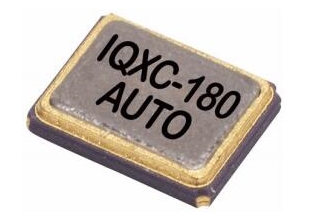

LFXTAL071747REEL|Resonator Crystal
LFXTAL071747REEL|Resonator Crystal,歐美晶振,IQD晶振,IQXC-180AUTO進口晶振,LFXTAL071747REEL晶振,石英晶體,四腳貼片晶振,晶體諧振器,無源晶振,3225mm晶振,頻率16.384MHz,負載8pF,頻率容差30ppm,工作溫度-40~85°C,小體積晶振,耐高溫晶振,抗沖擊晶振,GPS導航設備晶振,信息娛樂系統晶振,環繞視圖攝像頭晶振,汽車音響控制器晶振.
LFXTAL071747REEL|Resonator Crystal特點：
-帶有密封金屬蓋的陶瓷包裝，適用于汽車應用
-通過AEC-Q200認證，并可獲得IATF-16949:2016版本
-帶有密封金屬蓋的陶瓷包裝，適用于汽車應用
-通過AEC-Q200認證，并可獲得IATF-16949:2016版本
-不適合安全關鍵應用

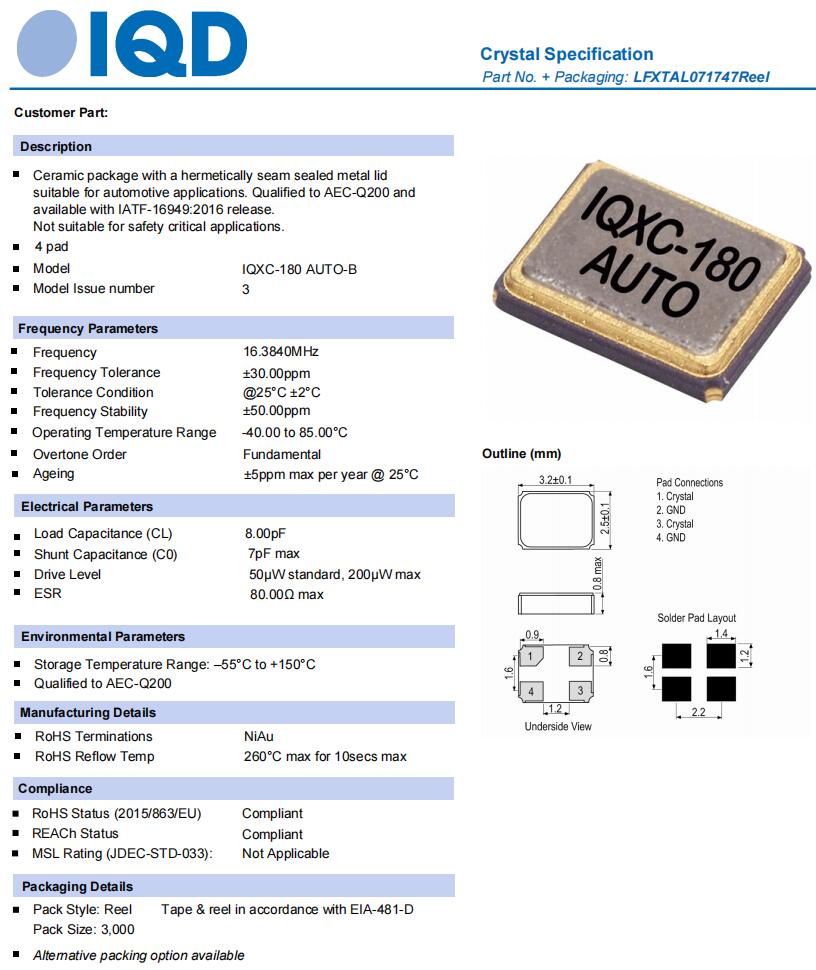

LFXTAL071747REEL|Resonator Crystal規格表
| Model | Product | |
| IQXC-180AUTO | ||
| frequency | 16.384MHz | |
| Frequency Tolerance | ±30.00ppm | |
|
Tolerance Condition
|
@ 25°C±2°C
|
|
|
Frequency Stability
|
±50.00ppm | |
| operating temperature range | -40 to +85°C | |
| Ageing |
±5ppm typical per year@25°C
|
|
| Load Capacitance | 8pF | |
| Shunt Capacitance | 7pF max | |
| Drive Level | 50µW standard, 200µW max | |
| ESR | 80Ω max | |
|
Storage Temperature Range
|
-55 to 125°C
|
|
.jpg)

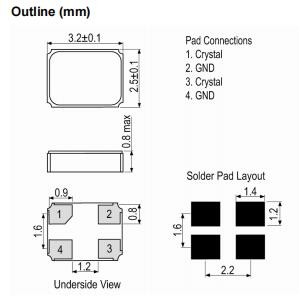

LFXTAL071747REEL|Resonator Crystal尺寸圖
| Mfr Part | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
| LFXTAL003000 | 85SMX | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| LFXTAL069395RL3K | CFPX-218 | 16.384 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
| LFXTAL009678 | CFPX-217 | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| LFXTAL050789REEL | IQXC-25 | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| LFXTAL055299REEL | CFPX-180 | 25 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
| LFXTAL053099REEL | CFPX-180 | 27.12 MHz | ±10ppm | 10pF | -20°C ~ 70°C |
| LFXTAL055663REEL | CFPX-104 | 8 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
| LFXTAL026392REEL | 12SMX-B | 16 MHz | ±30ppm | 16pF | -20°C ~ 70°C |
| LFXTAL011301REEL | HC49/4HSMX | 8 MHz | ±30ppm | 30pF | -10°C ~ 60°C |
| LFXTAL029370REEL | HC49/4HSMX | 16 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| LFXTAL016788REEL | HC49/4HSMX | 6 MHz | ±30ppm | 30pF | -10°C ~ 60°C |
| LFXTAL002995BULK | WATCH | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| LFXTAL002997BULK | WATCH | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| LFXTAL002996BULK | WATCH | 32.768 kHz | ±15ppm | 12.5pF | -40°C ~ 85°C |
| LFXTAL025159REEL | CFPX-56 | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| LFXTAL003181REEL | HC49/4HSMX | 20 MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| LFXTAL003166REEL | HC49/4HSMX | 10 MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| LFXTAL029914REEL | HC49/4HSMX | 8 MHz | ±30ppm | 16pF | -40°C ~ 85°C |
| LFXTAL003151REEL | HC49/4HSMX | 8 MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| LFXTAL003237REEL | HC49/4HSMX | 16 MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| LFXTAL014219BULK | WATCH | 32.768 kHz | ±20ppm | 6pF | -40°C ~ 85°C |
| LFXTAL069494REEL | IQXC-42 | 25 MHz | ±15ppm | 10pF | -40°C ~ 85°C |
| LFXTAL069383REEL | CFPX-218 | 24 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
| LFXTAL035264REEL | CFPX-180 | 16 MHz | ±50ppm | 16pF | -10°C ~ 60°C |
| LFXTAL069944REEL | CFPX-180 | 12 MHz | ±20ppm | 15pF | -40°C ~ 85°C |
| LFXTAL035268REEL | CFPX-180 | 25 MHz | ±50ppm | 16pF | -10°C ~ 60°C |
| LFXTAL056140REEL | IQXC-180 AUTO | 24 MHz | ±50ppm | 8pF | -40°C ~ 125°C |
| LFXTAL069526REEL | IQXC-26 | 32 MHz | ±15ppm | 8pF | -20°C ~ 70°C |
| LFXTAL084885 | IQXC-217 | 32.768 kHz | ±20ppm | 6pF | - |
| LFXTAL036075BULK | HC49/4H | 27.12 MHz | ±30ppm | 10pF | -10°C ~ 60°C |
| LFXTAL027945BULK | HC49/4H | 16 MHz | ±30ppm | 22pF | -10°C ~ 60°C |
| LFXTAL071268REEL | CFPX-218 AUTO | 16 MHz | ±10ppm | 10pF | -40°C ~ 125°C |
| LFXTAL061627REEL | CFPX-104 | 8 MHz | ±20ppm | 16pF | -40°C ~ 85°C |
| LFXTAL055901REEL | CFPX-104 | 8 MHz | ±20ppm | 18pF | -20°C ~ 70°C |
| LFXTAL059158REEL | CFPX-104 | 8 MHz | ±30ppm | 16pF | -40°C ~ 85°C |
| LFXTAL062558REEL | IQXC-25 | 32.768 kHz | ±10ppm | 9pF | -40°C ~ 85°C |
| LFXTAL026384REEL | 12SMX-B | 12 MHz | ±30ppm | 16pF | -20°C ~ 70°C |
| LFXTAL026394REEL | 12SMX-B | 20 MHz | ±30ppm | 16pF | -20°C ~ 70°C |
| LFXTAL056516REEL | 12SMX-B | 8 MHz | ±30ppm | 12pF | -20°C ~ 70°C |
| LFXTAL026380REEL | 12SMX-B | 8 MHz | ±30ppm | 16pF | -20°C ~ 70°C |
| LFXTAL055663BULK | CFPX-104 | 8 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
| LFXTAL003033BULK | HC49 | 1.8432 MHz | ±20ppm | 30pF | -10°C ~ 60°C |
| LFXTAL020423REEL | HC49/4HSMX | 8 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| LFXTAL024940REEL | HC49/4HSMX | 4 MHz | ±30ppm | 18pF | -20°C ~ 70°C |
| LFXTAL026900REEL | HC49/4HSMX | 6 MHz | ±20ppm | 16pF | -10°C ~ 60°C |
| LFXTAL030798REEL | HC49/4HSMX | 3.6864 MHz | ±30ppm | 16pF | -40°C ~ 85°C |
| LFXTAL082071RL3K | CFPX-180 | 16 MHz | ±10ppm | 8pF | -40°C ~ 85°C |
| LFXTAL082069RL3K | CFPX-180 | 12 MHz | ±10ppm | 8pF | -40°C ~ 85°C |
| LFXTAL058637RL3K | CFPX-180 | 25 MHz | ±30ppm | 12pF | -40°C ~ 85°C |
| LFXTAL059627REEL | IQXC-42 | 38.4 MHz | ±15ppm | 10pF | -40°C ~ 85°C |
| LFXTAL082135CUTT | IQXC-42 | 48 MHz | ±10ppm | 8pF | -40°C ~ 85°C |
| LFXTAL063334REEL | CFPX-218 | 25 MHz | ±20ppm | 10pF | -40°C ~ 85°C |
| LFXTAL055474REEL | CFPX-180 | 25 MHz | ±50ppm | 16pF | -40°C ~ 85°C |
| LFXTAL059648REEL | CFPX-180 | 40 MHz | ±20ppm | 18pF | -40°C ~ 85°C |
| LFXTAL072604REEL | CFPX-180 | 25 MHz | ±10ppm | 8pF | -40°C ~ 85°C |
| LFXTAL069882REEL | CFPX-180 | 12 MHz | ±30ppm | 10pF | -40°C ~ 125°C |
| LFXTAL070065REEL | CFPX-180 | 24 MHz | ±10ppm | 9pF | -40°C ~ 85°C |
| LFXTAL055293REEL | CFPX-180 | 14.7456 MHz | ±50ppm | 18pF | -40°C ~ 85°C |
| LFXTAL009650REEL | CFPX-180 | 16 MHz | ±10ppm | 16pF |
-40°C ~ 85°C |
