首頁歐美晶振Skyworks振蕩器,570BAB000544DG,6G無線網絡晶振

Skyworks振蕩器,570BAB000544DG,6G無線網絡晶振

產品型號：99127734
晶振頻率：156.25MHz
晶振尺寸：7.0*5.0*1.5mm
產品應用： Skyworks振蕩器,7050mm晶振,Si570有源晶振,570BAB000544DG晶振,高頻率穩定性晶振,高可靠性晶振,進口晶振,低抖動晶振,LVDS晶振,差分晶振,SMD晶體,6G無線網絡晶振,高性能儀器晶振,低抖動時鐘生成晶振.

Skyworks振蕩器,570BAB000544DG,6G無線網絡晶振,Skyworks振蕩器,7050mm晶振,Si570有源晶振在任何頻率下提供低抖動時鐘的電路,Si570/Si571是用戶可編程到從10到945 MHz的任何輸出頻率和選擇頻率到1400MHz,分辨率< 1ppb,該設備是通過I2C串行編程的接口,不像傳統的XO,每個輸出頻率需要不同的晶體,Si570使用一個固定頻率晶體和一個DSPLL時鐘合成IC提供任意頻率的操作,這種基于集成電路的方法允許晶體諧振器提供卓越的頻率穩定性和可靠性,LVDS晶振,差分晶振,SMD晶體,6G無線網絡晶振,高性能儀器晶振,低抖動時鐘生成晶振.

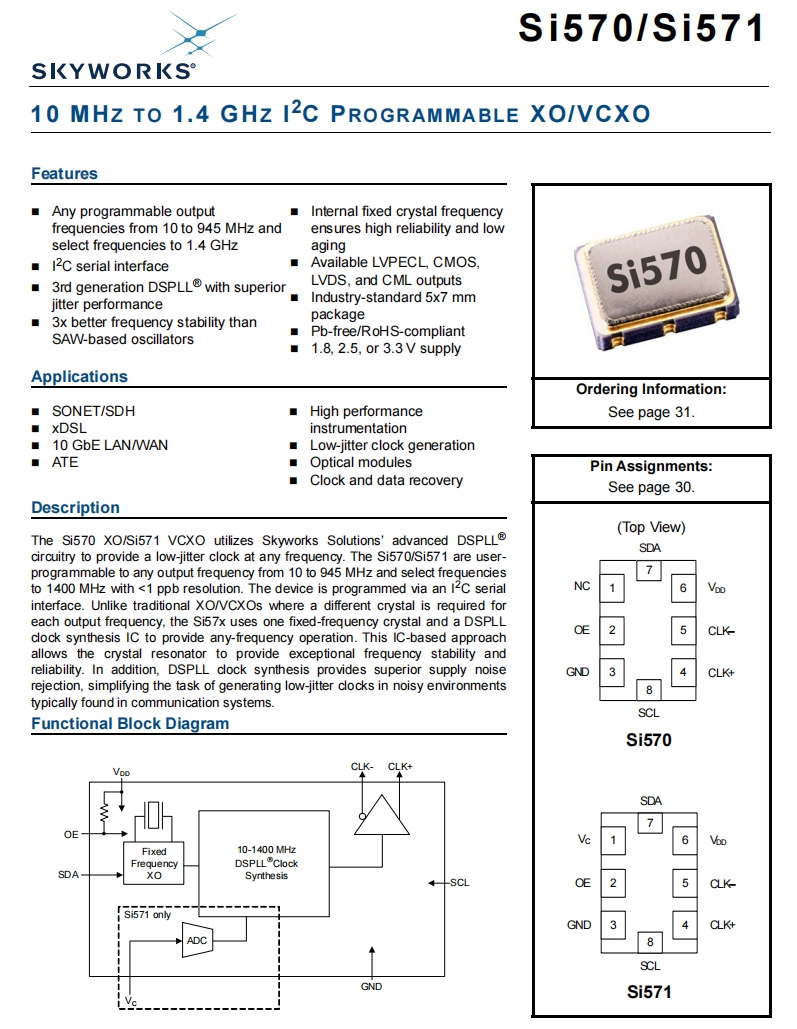

Skyworks振蕩器,570BAB000544DG,6G無線網絡晶振特點：

•可與任意速率輸出頻率從10MHz到945MHz和選擇頻率到1.4 GHz
•I2C串行接口

•第三代DSPLL®具有優越的抖動性能

•頻率穩定性優于SAW-based振蕩器

•內部固定晶頻，可靠性高，老化低

•具備CMOS, LVPECL，LVDS和CML輸出

•3.3, 2.5和1.8 V電源選項

•工業標準的5 × 7mm封裝和引腳

•無鉛，符合RoHS標準

Skyworks振蕩器,570BAB000544DG,6G無線網絡晶振規格表

項目	符號	規格說明	條件
額定頻率	f_nom	156.25MHz	請聯系我們以便獲取其它可用頻率的相關信息
電源電壓	Vcc	3.3V
儲存溫度	T_stg	-55℃~+125℃	裸存
工作溫度	T_use	-40℃~ +85℃
頻率穩定性	f_tol	±50 ppm	+25℃,超出標準的規格說明請聯系我們
電源電流	IDD	108mA Max	LVDS
對稱性（占空比）	SYM	45%~55%	在輸出交叉點
輸出電壓	VOD	0.9VPP Max	LVDS
輸出電壓	VO	1.275V Max	LVDS
輸入電壓	VIH	0.75×VDD Min
輸入電壓	VIL	0.5V Max
上升下降時間	tr/tf	350ps Max	LVDS
起始時間	t str	10ms Max
相位抖動	tpj	0.62ps Max	Differential Formats

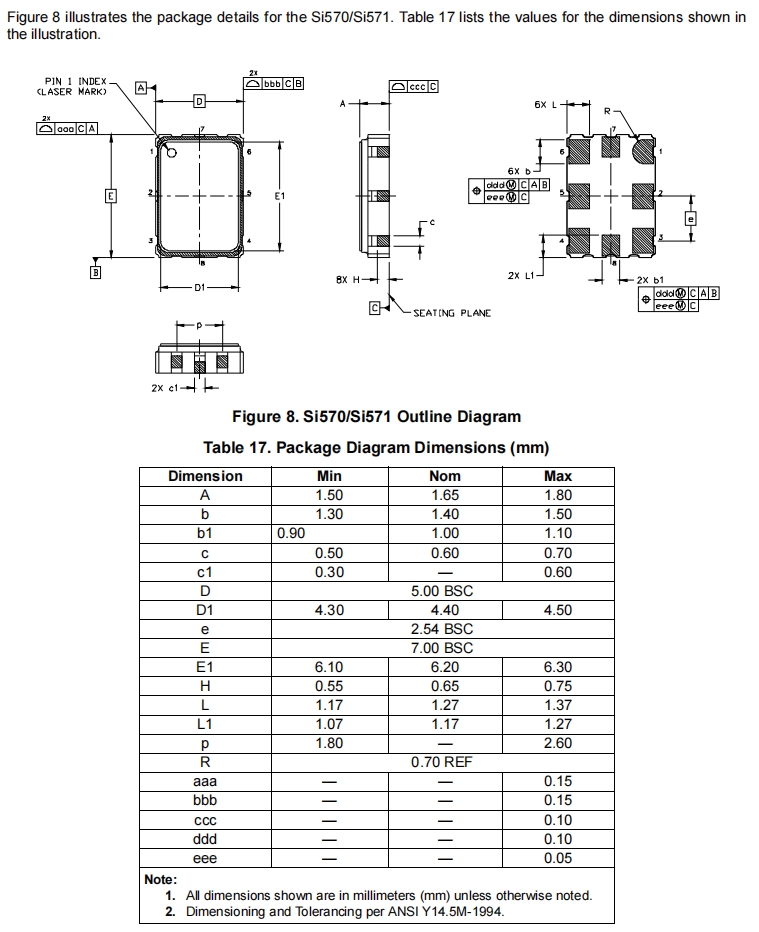

Skyworks振蕩器,570BAB000544DG,6G無線網絡晶振尺寸圖

原廠編碼	品牌	型號	頻率	輸出	電壓	頻率穩定性
570BAB000544DG	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	3.3V	±50ppm
570FAA000759DGR	Skyworks Solutions Inc.	Si570	644.53125 MHz	LVDS	2.5V	±50ppm
570BAB000118DG	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	3.3V	±50ppm
570BCC000112DG	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	3.3V	±7ppm
570BBC000876DG	Skyworks Solutions Inc.	Si570	49.87013 MHz	LVDS	3.3V	±20ppm
570ACA001527DGR	Skyworks Solutions Inc.	Si570	875 MHz	LVPECL	3.3V	±7ppm
570BBC000121DG	Skyworks Solutions Inc.	Si570	100 MHz	LVDS	3.3V	±20ppm
570BAB000544DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	3.3V	±50ppm
570BAB001614DGR	Skyworks Solutions Inc.	Si570	300 MHz	LVDS	3.3V	±50ppm
570BAB001614DG	Skyworks Solutions Inc.	Si570	300 MHz	LVDS	3.3V	±50ppm
570BAB000299DG	Skyworks Solutions Inc.	Si570	200 MHz	LVDS	3.3V	±50ppm
570AAA000111DG	Skyworks Solutions Inc.	Si570	25 MHz	LVPECL	3.3V	±50ppm
570AAC000118DG	Skyworks Solutions Inc.	Si570	156.25 MHz	LVPECL	3.3V	±50ppm
570AAC000129DG	Skyworks Solutions Inc.	Si570	155.52 MHz	LVPECL	3.3V	±50ppm
570BAC000115DG	Skyworks Solutions Inc.	Si570	125 MHz	LVDS	3.3V	±50ppm
570BBC000115DG	Skyworks Solutions Inc.	Si570	125 MHz	LVDS	3.3V	±20ppm
570FBC000121DG	Skyworks Solutions Inc.	Si570	100 MHz	LVDS	2.5V	±20ppm
570BCC000107DG	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	3.3V	±7ppm
570MAC000118DG	Skyworks Solutions Inc.	Si570	156.25 MHz	LVPECL	3.3V	±50ppm
570FAB000433DG	Skyworks Solutions Inc.	Si570	100 MHz	LVDS	2.5V	±50ppm
570FAB000544DG	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	2.5V	±50ppm
570ABB000419DG	Skyworks Solutions Inc.	Si570	155.52 MHz	LVPECL	3.3V	±20ppm
570BBB000115DG	Skyworks Solutions Inc.	Si570	125 MHz	LVDS	3.3V	±20ppm
570BCB000177DG	Skyworks Solutions Inc.	Si570	297 MHz	LVDS	3.3V	±7ppm
570BBC000159DG	Skyworks Solutions Inc.	Si570	148.5 MHz	LVDS	3.3V	±20ppm
570BAB001641DG	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	3.3V	±50ppm
570ABA001058DGR	Skyworks Solutions Inc.	Si570	644.53 MHz	LVPECL	3.3V	±20ppm
570ABA001328DGR	Skyworks Solutions Inc.	Si570	1.066 GHz	LVPECL	3.3V	±20ppm
570BBA000504DGR	Skyworks Solutions Inc.	Si570	48 MHz	LVDS	3.3V	±20ppm
570BBC000131DG	Skyworks Solutions Inc.	Si570	120 MHz	LVDS	3.3V	±20ppm
570BBC000131DGR	Skyworks Solutions Inc.	Si570	120 MHz	LVDS	3.3V	±20ppm
570BCB001530DG	Skyworks Solutions Inc.	Si570	148.5 MHz	LVDS	3.3V	±7ppm
570BCB001530DGR	Skyworks Solutions Inc.	Si570	148.5 MHz	LVDS	3.3V	±7ppm
570FAB000125DG	Skyworks Solutions Inc.	Si570	128.5 MHz	LVDS	2.5V	±50ppm
570FAB000125DGR	Skyworks Solutions Inc.	Si570	128.5 MHz	LVDS	2.5V	±50ppm
570FAC000125DG	Skyworks Solutions Inc.	Si570	128.5 MHz	LVDS	2.5V	±50ppm
570FAC000125DGR	Skyworks Solutions Inc.	Si570	128.5 MHz	LVDS	2.5V	±50ppm
570FCB001691DG	Skyworks Solutions Inc.	Si570	698.8123 MHz	LVDS	2.5V	±7ppm
570FCB001691DGR	Skyworks Solutions Inc.	Si570	698.8123 MHz	LVDS	2.5V	±7ppm
570ABB000133DG	Skyworks Solutions Inc.	Si570	500 MHz	LVPECL	3.3V	±20ppm
570ABB000133DGR	Skyworks Solutions Inc.	Si570	500 MHz	LVPECL	3.3V	±20ppm
570ACA000462DG	Skyworks Solutions Inc.	Si570	1 GHz	LVPECL	3.3V	±7ppm
570ACA000462DGR	Skyworks Solutions Inc.	Si570	1 GHz	LVPECL	3.3V	±7ppm
570BAB000125DG	Skyworks Solutions Inc.	Si570	128.5 MHz	LVDS	3.3V	±50ppm
570BAB000125DGR	Skyworks Solutions Inc.	Si570	128.5 MHz	LVDS	3.3V	±50ppm
570BAB001595DG	Skyworks Solutions Inc.	Si570	333 MHz	LVDS	3.3V	±50ppm
570BAB001595DGR	Skyworks Solutions Inc.	Si570	333 MHz	LVDS	3.3V	±50ppm
570BBA000504DG	Skyworks Solutions Inc.	Si570	48 MHz	LVDS	3.3V	±20ppm
570AAC000270DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±50ppm
570AAC001528DGR	Skyworks Solutions Inc.	Si570	19.984 MHz	LVPECL	3.3V	±50ppm
570AAC001762DGR	Skyworks Solutions Inc.	Si570	136.39008 MHz	LVPECL	3.3V	±50ppm
570EAC000741DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVPECL	2.5V	±50ppm
570FAC000465DGR	Skyworks Solutions Inc.	Si570	60 MHz	LVDS	2.5V	±50ppm
570FAC000833DGR	Skyworks Solutions Inc.	Si570	153.6 MHz	LVDS	2.5V	±50ppm
570FAC001059DGR	Skyworks Solutions Inc.	Si570	100 MHz	LVDS	2.5V	±50ppm
570FAC001531DGR	Skyworks Solutions Inc.	Si570	100 MHz	LVDS	2.5V	±50ppm
570BCA000136DG	Skyworks Solutions Inc.	Si570	160 MHz	LVDS	3.3V	±7ppm
570BCA000301DG	Skyworks Solutions Inc.	Si570	1.213 GHz	LVDS	3.3V	±7ppm
570BCA002166DG	Skyworks Solutions Inc.	Si570	33.333333 MHz	LVDS	3.3V	±7ppm
570ACA000313DG	Skyworks Solutions Inc.	Si570	300 MHz	LVPECL	3.3V	±7ppm
570BCA001830DG	Skyworks Solutions Inc.	Si570	1.215 GHz	LVDS	3.3V	±7ppm
570ACA002326DG	Skyworks Solutions Inc.	Si570	33.3333333 MHz	LVPECL	3.3V	±7ppm
570ACA002276DG	Skyworks Solutions Inc.	Si570	156.2 MHz	LVPECL	3.3V	±7ppm
570ACA000780DG	Skyworks Solutions Inc.	Si570	30 MHz	LVPECL	3.3V	±7ppm
570BCA000298DG	Skyworks Solutions Inc.	Si570	866 MHz	LVDS	3.3V	±7ppm
570ACA000544DG	Skyworks Solutions Inc.	Si570	156.25 MHz	LVPECL	3.3V	±7ppm
570BCA000163DG	Skyworks Solutions Inc.	Si570	20 MHz	LVDS	3.3V	±7ppm
570FCA001040DG	Skyworks Solutions Inc.	Si570	188 MHz	LVDS	2.5V	±7ppm
570BCA002400DG	Skyworks Solutions Inc.	Si570	49.87013 MHz	LVDS	3.3V	±7ppm
570ACA001123DG	Skyworks Solutions Inc.	Si570	156.25 MHz	LVPECL	3.3V	±7ppm
570BCA002390DG	Skyworks Solutions Inc.	Si570	50 MHz	LVDS	3.3V	±7ppm
570ACA001476DG	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570BCA000520DG	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	3.3V	±7ppm
570BCA000915DG	Skyworks Solutions Inc.	Si570	375 MHz	LVDS	3.3V	±7ppm
570BCA002414DG	Skyworks Solutions Inc.	Si570	174.703 MHz	LVDS	3.3V	±7ppm
570BCA000157DG	Skyworks Solutions Inc.	Si570	50 MHz	LVDS	3.3V	±7ppm
570ACA002412DG	Skyworks Solutions Inc.	Si570	1.05 GHz	LVPECL	3.3V	±7ppm
570ACA000420DG	Skyworks Solutions Inc.	Si570	644.53125 MHz	LVPECL	3.3V	±7ppm
570ACA002188DG	Skyworks Solutions Inc.	Si570	20 MHz	LVPECL	3.3V	±7ppm
570AAC000270DG	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±50ppm
570AAC001528DG	Skyworks Solutions Inc.	Si570	19.984 MHz	LVPECL	3.3V	±50ppm
570AAC001762DG	Skyworks Solutions Inc.	Si570	136.39008 MHz	LVPECL	3.3V	±50ppm
570EAC000741DG	Skyworks Solutions Inc.	Si570	156.25 MHz	LVPECL	2.5V	±50ppm
570FAC000465DG	Skyworks Solutions Inc.	Si570	60 MHz	LVDS	2.5V	±50ppm
570FAC000833DG	Skyworks Solutions Inc.	Si570	153.6 MHz	LVDS	2.5V	±50ppm
570FAC001059DG	Skyworks Solutions Inc.	Si570	100 MHz	LVDS	2.5V	±50ppm
570FAC001531DG	Skyworks Solutions Inc.	Si570	100 MHz	LVDS	2.5V	±50ppm
570NBA000163DG	Skyworks Solutions Inc.	Si570	20 MHz	LVDS	3.3V	±20ppm
570NBA000223DG	Skyworks Solutions Inc.	Si570	28.192 MHz	LVDS	3.3V	±20ppm
570NBA000233DG	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	3.3V	±20ppm
570NBA000352DG	Skyworks Solutions Inc.	Si570	288.399994 MHz	LVDS	3.3V	±20ppm
570NBA000724DG	Skyworks Solutions Inc.	Si570	26 MHz	LVDS	3.3V	±20ppm
570NBA000725DG	Skyworks Solutions Inc.	Si570	56 MHz	LVDS	3.3V	±20ppm
570NBA000726DG	Skyworks Solutions Inc.	Si570	100 MHz	LVDS	3.3V	±20ppm
570NBA000727DG	Skyworks Solutions Inc.	Si570	200 MHz	LVDS	3.3V	±20ppm
570NBA000728DG	Skyworks Solutions Inc.	Si570	900 MHz	LVDS	3.3V	±20ppm
570NBA001482DG	Skyworks Solutions Inc.	Si570	700 MHz	LVDS	3.3V	±20ppm
570NBA001484DG	Skyworks Solutions Inc.	Si570	700 MHz	LVDS	3.3V	±20ppm
570NBA001485DG	Skyworks Solutions Inc.	Si570	700 MHz	LVDS	3.3V	±20ppm
570NBA001486DG	Skyworks Solutions Inc.	Si570	700 MHz	LVDS	3.3V	±20ppm
570RBA000115DG	Skyworks Solutions Inc.	Si570	125 MHz	LVPECL	2.5V	±20ppm
570SBA000121DG	Skyworks Solutions Inc.	Si570	100 MHz	LVDS	2.5V	±20ppm
570BBA000290DG	Skyworks Solutions Inc.	Si570	250 MHz	LVDS	3.3V	±20ppm
570BBA001058DG	Skyworks Solutions Inc.	Si570	644.53 MHz	LVDS	3.3V	±20ppm
570BBA002068DG	Skyworks Solutions Inc.	Si570	54 MHz	LVDS	3.3V	±20ppm
570BBA002069DG	Skyworks Solutions Inc.	Si570	148.5 MHz	LVDS	3.3V	±20ppm
570FBA000157DG	Skyworks Solutions Inc.	Si570	50 MHz	LVDS	2.5V	±20ppm
570NBA000280DG	Skyworks Solutions Inc.	Si570	108 MHz	LVDS	3.3V	±20ppm
570EBA000115DG	Skyworks Solutions Inc.	Si570	125 MHz	LVPECL	2.5V	±20ppm
570BBA000111DG	Skyworks Solutions Inc.	Si570	25 MHz	LVDS	3.3V	±20ppm
570BBA000372DG	Skyworks Solutions Inc.	Si570	800 MHz	LVDS	3.3V	±20ppm
570BBA001553DG	Skyworks Solutions Inc.	Si570	1 GHz	LVDS	3.3V	±20ppm
570BBA002195DG	Skyworks Solutions Inc.	Si570	500 MHz	LVDS	3.3V	±20ppm
570BBA000653DG	Skyworks Solutions Inc.	Si570	161.132812 MHz	LVDS	3.3V	±20ppm
570BBA002365DG	Skyworks Solutions Inc.	Si570	106.25 MHz	LVDS	3.3V	±20ppm
570BBA000313DG	Skyworks Solutions Inc.	Si570	300 MHz	LVDS	3.3V	±20ppm
570FBA000122DG	Skyworks Solutions Inc.	Si570	1 GHz	LVDS	2.5V	±20ppm
570FBA000668DG	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	2.5V	±20ppm
570BBA002392DG	Skyworks Solutions Inc.	Si570	200 MHz	LVDS	3.3V	±20ppm
570BBA000353DG	Skyworks Solutions Inc.	Si570	200 MHz	LVDS	3.3V	±20ppm
570BBA001873DG	Skyworks Solutions Inc.	Si570	148.5 MHz	LVDS	3.3V	±20ppm
570ACA000107DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570ACA000111DGR	Skyworks Solutions Inc.	Si570	25 MHz	LVPECL	3.3V	±7ppm
570ACA000112DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570ACA000115DGR	Skyworks Solutions Inc.	Si570	125 MHz	LVPECL	3.3V	±7ppm
570ACA000118DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVPECL	3.3V	±7ppm
570ACA000121DGR	Skyworks Solutions Inc.	Si570	100 MHz	LVPECL	3.3V	±7ppm
570ACA000122DGR	Skyworks Solutions Inc.	Si570	1 GHz	LVPECL	3.3V	±7ppm
570ACA000141DGR	Skyworks Solutions Inc.	Si570	56.32 MHz	LVPECL	3.3V	±7ppm
570ACA000153DGR	Skyworks Solutions Inc.	Si570	12 MHz	LVPECL	3.3V	±7ppm
570ACA000163DGR	Skyworks Solutions Inc.	Si570	20 MHz	LVPECL	3.3V	±7ppm
570ACA000178DGR	Skyworks Solutions Inc.	Si570	16 MHz	LVPECL	3.3V	±7ppm
570ACA000233DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570ACA000368DGR	Skyworks Solutions Inc.	Si570	122.88 MHz	LVPECL	3.3V	±7ppm
570ACA000383DGR	Skyworks Solutions Inc.	Si570	150 MHz	LVPECL	3.3V	±7ppm
570ACA000430DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570ACA000476DGR	Skyworks Solutions Inc.	Si570	322.265625 MHz	LVPECL	3.3V	±7ppm
570ACA000496DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570ACA000514DGR	Skyworks Solutions Inc.	Si570	19.982 MHz	LVPECL	3.3V	±7ppm
570ACA000650DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570ACA000732DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570ACA000770DGR	Skyworks Solutions Inc.	Si570	100 MHz	LVPECL	3.3V	±7ppm
570ACA000810DGR	Skyworks Solutions Inc.	Si570	135.3 MHz	LVPECL	3.3V	±7ppm
570ACA000918DGR	Skyworks Solutions Inc.	Si570	135 MHz	LVPECL	3.3V	±7ppm
570ACA000919DGR	Skyworks Solutions Inc.	Si570	135 MHz	LVPECL	3.3V	±7ppm
570ACA000957DGR	Skyworks Solutions Inc.	Si570	125 MHz	LVPECL	3.3V	±7ppm
570ACA000958DGR	Skyworks Solutions Inc.	Si570	74.25 MHz	LVPECL	3.3V	±7ppm
570ACA000973DGR	Skyworks Solutions Inc.	Si570	125 MHz	LVPECL	3.3V	±7ppm
570ACA001026DGR	Skyworks Solutions Inc.	Si570	125 MHz	LVPECL	3.3V	±7ppm
570ACA001055DGR	Skyworks Solutions Inc.	Si570	103.125 MHz	LVPECL	3.3V	±7ppm
570ACA001122DGR	Skyworks Solutions Inc.	Si570	1.4 GHz	LVPECL	3.3V	±7ppm
570ACA001154DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVPECL	3.3V	±7ppm
570ACA001210DGR	Skyworks Solutions Inc.	Si570	135 MHz	LVPECL	3.3V	±7ppm
570ACA001273DGR	Skyworks Solutions Inc.	Si570	1.03125 GHz	LVPECL	3.3V	±7ppm
570ACA001432DGR	Skyworks Solutions Inc.	Si570	72 MHz	LVPECL	3.3V	±7ppm
570ACA001479DGR	Skyworks Solutions Inc.	Si570	431.92 MHz	LVPECL	3.3V	±7ppm
570ACA001528DGR	Skyworks Solutions Inc.	Si570	19.984 MHz	LVPECL	3.3V	±7ppm
570ACA001557DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570ACA001617DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVPECL	3.3V	±7ppm
570ACA001644DGR	Skyworks Solutions Inc.	Si570	805.664063 MHz	LVPECL	3.3V	±7ppm
570ACA001732DGR	Skyworks Solutions Inc.	Si570	28 MHz	LVPECL	3.3V	±7ppm
570ACA001785DGR	Skyworks Solutions Inc.	Si570	19.982 MHz	LVPECL	3.3V	±7ppm
570ACA001786DGR	Skyworks Solutions Inc.	Si570	28 MHz	LVPECL	3.3V	±7ppm
570ACA001798DGR	Skyworks Solutions Inc.	Si570	307.2 MHz	LVPECL	3.3V	±7ppm
570ACA001864DGR	Skyworks Solutions Inc.	Si570	945 MHz	LVPECL	3.3V	±7ppm
570ACA001867DGR	Skyworks Solutions Inc.	Si570	19.984 MHz	LVPECL	3.3V	±7ppm
570ACA001874DGR	Skyworks Solutions Inc.	Si570	56.3202 MHz	LVPECL	3.3V	±7ppm
570ACA001880DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570ACA001922DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570BCA000107DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	3.3V	±7ppm
570BCA000111DGR	Skyworks Solutions Inc.	Si570	25 MHz	LVDS	3.3V	±7ppm
570BCA000112DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	3.3V	±7ppm
570BCA000115DGR	Skyworks Solutions Inc.	Si570	125 MHz	LVDS	3.3V	±7ppm
570BCA000118DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	3.3V	±7ppm
570BCA000121DGR	Skyworks Solutions Inc.	Si570	100 MHz	LVDS	3.3V	±7ppm
570BCA000122DGR	Skyworks Solutions Inc.	Si570	1 GHz	LVDS	3.3V	±7ppm
570BCA000126DGR	Skyworks Solutions Inc.	Si570	200 MHz	LVDS	3.3V	±7ppm
570BCA000141DGR	Skyworks Solutions Inc.	Si570	56.32 MHz	LVDS	3.3V	±7ppm
570BCA000159DGR	Skyworks Solutions Inc.	Si570	148.5 MHz	LVDS	3.3V	±7ppm
570BCA000215DGR	Skyworks Solutions Inc.	Si570	27 MHz	LVDS	3.3V	±7ppm
570BCA000233DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	3.3V	±7ppm
570BCA000274DGR	Skyworks Solutions Inc.	Si570	148 MHz	LVDS	3.3V	±7ppm
570BCA000290DGR	Skyworks Solutions Inc.	Si570	250 MHz	LVDS	3.3V	±7ppm
570BCA000305DGR	Skyworks Solutions Inc.	Si570	64 MHz	LVDS	3.3V	±7ppm
570BCA000383DGR	Skyworks Solutions Inc.	Si570	150 MHz	LVDS	3.3V	±7ppm
570BCA000420DGR	Skyworks Solutions Inc.	Si570	644.53125 MHz	LVDS	3.3V	±7ppm
570BCA000476DGR	Skyworks Solutions Inc.	Si570	322.265625 MHz	LVDS	3.3V	±7ppm
570BCA000496DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	3.3V	±7ppm
570BCA000642DGR	Skyworks Solutions Inc.	Si570	100 MHz	LVDS	3.3V	±7ppm
570BCA000653DGR	Skyworks Solutions Inc.	Si570	161.132812 MHz	LVDS	3.3V	±7ppm
570BCA000763DGR	Skyworks Solutions Inc.	Si570	1.09 GHz	LVDS	3.3V	±7ppm
570BCA000918DGR	Skyworks Solutions Inc.	Si570	135 MHz	LVDS	3.3V	±7ppm
570BCA001026DGR	Skyworks Solutions Inc.	Si570	125 MHz	LVDS	3.3V	±7ppm
570BCA001031DGR	Skyworks Solutions Inc.	Si570	437.5 MHz	LVDS	3.3V	±7ppm
570BCA001226DGR	Skyworks Solutions Inc.	Si570	1.02 GHz	LVDS	3.3V	±7ppm
570BCA001336DGR	Skyworks Solutions Inc.	Si570	288.3 MHz	LVDS	3.3V	±7ppm
570BCA001407DGR	Skyworks Solutions Inc.	Si570	932 MHz	LVDS	3.3V	±7ppm
570BCA001454DGR	Skyworks Solutions Inc.	Si570	691.2 MHz	LVDS	3.3V	±7ppm
570BCA001467DGR	Skyworks Solutions Inc.	Si570	266.666667 MHz	LVDS	3.3V	±7ppm
570BCA001754DGR	Skyworks Solutions Inc.	Si570	39.0625 MHz	LVDS	3.3V	±7ppm
570BCA001850DGR	Skyworks Solutions Inc.	Si570	625 MHz	LVDS	3.3V	±7ppm
570BCA001915DGR	Skyworks Solutions Inc.	Si570	175 MHz	LVDS	3.3V	±7ppm
570BCA001964DGR	Skyworks Solutions Inc.	Si570	14.875 MHz	LVDS	3.3V	±7ppm
570ECA000107DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	2.5V	±7ppm
570ECA000941DGR	Skyworks Solutions Inc.	Si570	56 MHz	LVPECL	2.5V	±7ppm
570ECA001798DGR	Skyworks Solutions Inc.	Si570	307.2 MHz	LVPECL	2.5V	±7ppm
570FCA000107DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	2.5V	±7ppm
570FCA000112DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	2.5V	±7ppm
570FCA000115DGR	Skyworks Solutions Inc.	Si570	125 MHz	LVDS	2.5V	±7ppm
570FCA000118DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	2.5V	±7ppm
570FCA000121DGR	Skyworks Solutions Inc.	Si570	100 MHz	LVDS	2.5V	±7ppm
570FCA000133DGR	Skyworks Solutions Inc.	Si570	500 MHz	LVDS	2.5V	±7ppm
570FCA000169DGR	Skyworks Solutions Inc.	Si570	125 MHz	LVDS	2.5V	±7ppm
570FCA000179DGR	Skyworks Solutions Inc.	Si570	312.5 MHz	LVDS	2.5V	±7ppm
570FCA000372DGR	Skyworks Solutions Inc.	Si570	800 MHz	LVDS	2.5V	±7ppm
570FCA000420DGR	Skyworks Solutions Inc.	Si570	644.53125 MHz	LVDS	2.5V	±7ppm
570FCA000476DGR	Skyworks Solutions Inc.	Si570	322.265625 MHz	LVDS	2.5V	±7ppm
570FCA000544DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	2.5V	±7ppm
570FCA000643DGR	Skyworks Solutions Inc.	Si570	212.5 MHz	LVDS	2.5V	±7ppm
570FCA001031DGR	Skyworks Solutions Inc.	Si570	437.5 MHz	LVDS	2.5V	±7ppm
570FCA001228DGR	Skyworks Solutions Inc.	Si570	125 MHz	LVDS	2.5V	±7ppm
570FCA001702DGR	Skyworks Solutions Inc.	Si570	99.75 MHz	LVDS	2.5V	±7ppm
570FCA001742DGR	Skyworks Solutions Inc.	Si570	300 MHz	LVDS	2.5V	±7ppm
570FCA001842DGR	Skyworks Solutions Inc.	Si570	200.08 MHz	LVDS	2.5V	±7ppm
570FCA001879DGR	Skyworks Solutions Inc.	Si570	122.88 MHz	LVDS	2.5V	±7ppm
570MCA000107DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570MCA000112DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570MCA000121DGR	Skyworks Solutions Inc.	Si570	100 MHz	LVPECL	3.3V	±7ppm
570MCA000346DGR	Skyworks Solutions Inc.	Si570	81.36 MHz	LVPECL	3.3V	±7ppm
570MCA000763DGR	Skyworks Solutions Inc.	Si570	1.09 GHz	LVPECL	3.3V	±7ppm
570MCA001230DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570MCA001303DGR	Skyworks Solutions Inc.	Si570	212 MHz	LVPECL	3.3V	±7ppm
570NCA000107DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	3.3V	±7ppm
570NCA000112DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	3.3V	±7ppm
570NCA000159DGR	Skyworks Solutions Inc.	Si570	148.5 MHz	LVDS	3.3V	±7ppm
570NCA000759DGR	Skyworks Solutions Inc.	Si570	644.53125 MHz	LVDS	3.3V	±7ppm
570NCA000803DGR	Skyworks Solutions Inc.	Si570	148.351648 MHz	LVDS	3.3V	±7ppm
570NCA000830DGR	Skyworks Solutions Inc.	Si570	74.9633969 MHz	LVDS	3.3V	±7ppm
570NCA000933DGR	Skyworks Solutions Inc.	Si570	125 MHz	LVDS	3.3V	±7ppm
570NCA001047DGR	Skyworks Solutions Inc.	Si570	148.351 MHz	LVDS	3.3V	±7ppm
570NCA001780DGR	Skyworks Solutions Inc.	Si570	106.92 MHz	LVDS	3.3V	±7ppm
570NCA001881DGR	Skyworks Solutions Inc.	Si570	166 MHz	LVDS	3.3V	±7ppm
570RCA000383DGR	Skyworks Solutions Inc.	Si570	150 MHz	LVPECL	2.5V	±7ppm
570RCA000825DGR	Skyworks Solutions Inc.	Si570	750 MHz	LVPECL	2.5V	±7ppm
570RCA001068DGR	Skyworks Solutions Inc.	Si570	100 MHz	LVPECL	2.5V	±7ppm
570SCA000112DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	2.5V	±7ppm
570ACA000131DGR	Skyworks Solutions Inc.	Si570	120 MHz	LVPECL	3.3V	±7ppm
570ACA000212DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570ACA000273DGR	Skyworks Solutions Inc.	Si570	19.44 MHz	LVPECL	3.3V	±7ppm
570ACA000282DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570ACA000290DGR	Skyworks Solutions Inc.	Si570	250 MHz	LVPECL	3.3V	±7ppm
570ACA001930DGR	Skyworks Solutions Inc.	Si570	120 MHz	LVPECL	3.3V	±7ppm
570ACA001977DGR	Skyworks Solutions Inc.	Si570	24 MHz	LVPECL	3.3V	±7ppm
570ACA002083DGR	Skyworks Solutions Inc.	Si570	161.4 MHz	LVPECL	3.3V	±7ppm
570ACA002096DGR	Skyworks Solutions Inc.	Si570	477.225 MHz	LVPECL	3.3V	±7ppm
570BCA000131DGR	Skyworks Solutions Inc.	Si570	120 MHz	LVDS	3.3V	±7ppm
570BCA000144DGR	Skyworks Solutions Inc.	Si570	80 MHz	LVDS	3.3V	±7ppm
570BCA000161DGR	Skyworks Solutions Inc.	Si570	491.52 MHz	LVDS	3.3V	±7ppm
570BCA000202DGR	Skyworks Solutions Inc.	Si570	14.4 MHz	LVDS	3.3V	±7ppm
570BCA000273DGR	Skyworks Solutions Inc.	Si570	19.44 MHz	LVDS	3.3V	±7ppm
570BCA000313DGR	Skyworks Solutions Inc.	Si570	300 MHz	LVDS	3.3V	±7ppm
570BCA000544DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	3.3V	±7ppm
570BCA000597DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	3.3V	±7ppm
570BCA000627DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	3.3V	±7ppm
570BCA001344DGR	Skyworks Solutions Inc.	Si570	150 MHz	LVDS	3.3V	±7ppm
570BCA001432DGR	Skyworks Solutions Inc.	Si570	72 MHz	LVDS	3.3V	±7ppm
570BCA001978DGR	Skyworks Solutions Inc.	Si570	204.8 MHz	LVDS	3.3V	±7ppm
570BCA002013DGR	Skyworks Solutions Inc.	Si570	200 MHz	LVDS	3.3V	±7ppm
570BCA002054DGR	Skyworks Solutions Inc.	Si570	174.703 MHz	LVDS	3.3V	±7ppm
570BCA002055DGR	Skyworks Solutions Inc.	Si570	174.7031 MHz	LVDS	3.3V	±7ppm
570ECA000122DGR	Skyworks Solutions Inc.	Si570	1 GHz	LVPECL	2.5V	±7ppm
570FCA000122DGR	Skyworks Solutions Inc.	Si570	1 GHz	LVDS	2.5V	±7ppm
570FCA000136DGR	Skyworks Solutions Inc.	Si570	160 MHz	LVDS	2.5V	±7ppm
570FCA000400DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	2.5V	±7ppm
570FCA001346DGR	Skyworks Solutions Inc.	Si570	200.08 MHz	LVDS	2.5V	±7ppm
570FCA001624DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	2.5V	±7ppm
570MCA001978DGR	Skyworks Solutions Inc.	Si570	204.8 MHz	LVPECL	3.3V	±7ppm
570NCA000118DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	3.3V	±7ppm
570FCA002126DGR	Skyworks Solutions Inc.	Si570	152.987639 MHz	LVDS	2.5V	±7ppm
570ACA002145DGR	Skyworks Solutions Inc.	Si570	122.88 MHz	LVPECL	3.3V	±7ppm
570BCA000298DGR	Skyworks Solutions Inc.	Si570	866 MHz	LVDS	3.3V	±7ppm
570ACA002325DGR	Skyworks Solutions Inc.	Si570	10.1313 MHz	LVPECL	3.3V	±7ppm
570ACA000133DGR	Skyworks Solutions Inc.	Si570	500 MHz	LVPECL	3.3V	±7ppm
570BCA000372DGR	Skyworks Solutions Inc.	Si570	800 MHz	LVDS	3.3V	±7ppm
570BCA002281DGR	Skyworks Solutions Inc.	Si570	1.213 GHz	LVDS	3.3V	±7ppm
570BCA002265DGR	Skyworks Solutions Inc.	Si570	133.333 MHz	LVDS	3.3V	±7ppm
570BCA002235DGR	Skyworks Solutions Inc.	Si570	150 MHz	LVDS	3.3V	±7ppm
570BCA000896DGR	Skyworks Solutions Inc.	Si570	100 MHz	LVDS	3.3V	±7ppm
570BCA000907DGR	Skyworks Solutions Inc.	Si570	106.25 MHz	LVDS	3.3V	±7ppm
570ACA000544DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVPECL	3.3V	±7ppm
570BCA000282DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVDS	3.3V	±7ppm
570BCA002229DGR	Skyworks Solutions Inc.	Si570	143.75 MHz	LVDS	3.3V	±7ppm
570BCA000163DGR	Skyworks Solutions Inc.	Si570	20 MHz	LVDS	3.3V	±7ppm
570FCA002351DGR	Skyworks Solutions Inc.	Si570	99.75 MHz	LVDS	2.5V	±7ppm
570ACA000780DGR	Skyworks Solutions Inc.	Si570	30 MHz	LVPECL	3.3V	±7ppm
570FCA002334DGR	Skyworks Solutions Inc.	Si570	99.75 MHz	LVDS	2.5V	±7ppm
570BCA000299DGR	Skyworks Solutions Inc.	Si570	200 MHz	LVDS	3.3V	±7ppm
570ACA000157DGR	Skyworks Solutions Inc.	Si570	50 MHz	LVPECL	3.3V	±7ppm
570BCA000804DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	3.3V	±7ppm
570BCA000458DGR	Skyworks Solutions Inc.	Si570	26 MHz	LVDS	3.3V	±7ppm
570ACA000668DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570ECA000112DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	2.5V	±7ppm
570BCA000991DGR	Skyworks Solutions Inc.	Si570	135 MHz	LVDS	3.3V	±7ppm
570BCA000685DGR	Skyworks Solutions Inc.	Si570	640 MHz	LVDS	3.3V	±7ppm
570ACA002276DGR	Skyworks Solutions Inc.	Si570	156.2 MHz	LVPECL	3.3V	±7ppm
570ACA002287DGR	Skyworks Solutions Inc.	Si570	195.3125 MHz	LVPECL	3.3V	±7ppm
570ACA002280DGR	Skyworks Solutions Inc.	Si570	1.213 GHz	LVPECL	3.3V	±7ppm
570ACA002326DGR	Skyworks Solutions Inc.	Si570	33.3333333 MHz	LVPECL	3.3V	±7ppm
570BCA000586DGR	Skyworks Solutions Inc.	Si570	155.52 MHz	LVDS	3.3V	±7ppm
570BCA000676DGR	Skyworks Solutions Inc.	Si570	100 MHz	LVDS	3.3V	±7ppm
570ACA001844DGR	Skyworks Solutions Inc.	Si570	200 MHz	LVPECL	3.3V	±7ppm
570FCA002199DGR	Skyworks Solutions Inc.	Si570	644.53125 MHz	LVDS	2.5V	±7ppm
570NCA000157DGR	Skyworks Solutions Inc.	Si570	50 MHz	LVDS	3.3V	±7ppm
570BCA000301DGR	Skyworks Solutions Inc.	Si570	1.213 GHz	LVDS	3.3V	±7ppm
570ACA000400DGR	Skyworks Solutions Inc.	Si570	10 MHz	LVPECL	3.3V	±7ppm
570FCA002265DGR	Skyworks Solutions Inc.	Si570	133.333 MHz	LVDS	2.5V	±7ppm
570BCA002166DGR	Skyworks Solutions Inc.	Si570	33.333333 MHz	LVDS	3.3V	±7ppm
570ACA002322DGR	Skyworks Solutions Inc.	Si570	13.1313 MHz	LVPECL	3.3V	±7ppm
570BCA001830DGR	Skyworks Solutions Inc.	Si570	1.215 GHz	LVDS	3.3V	±7ppm
570BCA000136DGR	Skyworks Solutions Inc.	Si570	160 MHz	LVDS	3.3V	±7ppm
570FCA000131DGR	Skyworks Solutions Inc.	Si570	120 MHz	LVDS	2.5V	±7ppm
570FCA002183DGR	Skyworks Solutions Inc.	Si570	187.3125 MHz	LVDS	2.5V	±7ppm
570ACA002327DGR	Skyworks Solutions Inc.	Si570	13.040521 MHz	LVPECL	3.3V	±7ppm
570BCA001617DGR	Skyworks Solutions Inc.	Si570	156.25 MHz	LVDS	3.3V	±7ppm
570ACA000313DGR	Skyworks Solutions Inc.	Si570	300 MHz	LVPECL	3.3V	±7ppm

1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 　　何疑問.讓您的消費得到保障。
3.質量保證，誠信為上　　 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 　為您的產品量身訂制,免費取樣,
　　　　　　為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請提前和業務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.

　深圳市泰河電子有限公司
　代理:EPSON,KDS,CITIZEN,SEIKO
　電話:0755-27872782
　手機:13824306246
　郵箱:taiheth@163.com
　Q Q:794113422
　地址:深圳市寶安區40區33號工業城6樓
　網址：http://www.qixiaohong138.cn
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!
