愛普生每一款晶振都有它自己的身份編碼，愛普生晶振型號FA-20H是愛普生晶振MHZ系列的晶振，26.000000MHZ的頻率，負載電容為8PF，30PPM的常用精度，可在-20℃至+85℃的范圍內工作，儲存溫度可達-40℃至+125℃，這些主要的晶振參數讓這顆愛普生晶振FA-20H有了一個身份證號碼，也就是愛普生晶振編碼Q24FA20H0015000，但是同樣的26.000000MHZ,，工作溫度范圍以及儲存溫度都是一樣的，卻只因精度更高了一點點，就讓這款FA-20H晶振的愛普生晶振編碼發生了改變，10PPM的高精度的愛普生晶振編碼為Q24FA20H0013700，編碼如下表：
愛普生晶振編碼Q24FA20H0015000專用于移動電話應用,Q24FA20H0013700,無源晶振

產品編碼	尺寸	型號	頻率	負載電容	精度	頻率公差	工作溫度
Q24FA20H0007400	2.5x2x0.55mm	FA-20H	26.000000MHz	10.5pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0007700	2.5x2x0.55mm	FA-20H	26.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0007900	2.5x2x0.55mm	FA-20H	26.000000MHz	16pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0008500	2.5x2x0.55mm	FA-20H	24.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0008600	2.5x2x0.55mm	FA-20H	24.576000MHz	8pF	+/-15ppm	+/-15ppm	-20to+75°C
Q24FA20H0008700	2.5x2x0.55mm	FA-20H	30.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+70°C
Q24FA20H0009200	2.5x2x0.55mm	FA-20H	24.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q24FA20H0009300	2.5x2x0.55mm	FA-20H	12.000000MHz	10pF	+/-30ppm	+/-30ppm	-20to+70°C
Q24FA20H0009500	2.5x2x0.55mm	FA-20H	27.000000MHz	7pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0009700	2.5x2x0.55mm	FA-20H	40.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0010000	2.5x2x0.55mm	FA-20H	16.000000MHz	20pF	+/-20ppm	+/-20ppm	-20to+75°C
Q24FA20H0010600	2.5x2x0.55mm	FA-20H	32.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0011400	2.5x2x0.55mm	FA-20H	25.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q24FA20H0011500	2.5x2x0.55mm	FA-20H	25.000000MHz	8pF	+/-30ppm	+/-30ppm	-20to+75°C
Q24FA20H0011600	2.5x2x0.55mm	FA-20H	25.000000MHz	18pF	+/-30ppm	+/-30ppm	-30to+85°C
Q24FA20H0011800	2.5x2x0.55mm	FA-20H	27.120000MHz	18pF	+/-10ppm	+/-20ppm	-20to+70°C
Q24FA20H0012200	2.5x2x0.55mm	FA-20H	16.000000MHz	9pF	+/-10ppm	+/-22ppm	-40to+85°C
Q24FA20H0012600	2.5x2x0.55mm	FA-20H	26.000000MHz	15pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0012800	2.5x2x0.55mm	FA-20H	20.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0013200	2.5x2x0.55mm	FA-20H	24.576000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0013700	2.5x2x0.55mm	FA-20H	26.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+80°C
Q24FA20H0013900	2.5x2x0.55mm	FA-20H	30.000000MHz	8pF	+/-30ppm	+/-30ppm	-40to+85°C
Q24FA20H0014700	2.5x2x0.55mm	FA-20H	27.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q24FA20H0015000	2.5x2x0.55mm	FA-20H	26.000000MHz	8pF	+/-30ppm	+/-30ppm	-20to+85°C
Q24FA20H0015100	2.5x2x0.55mm	FA-20H	32.000000MHz	16pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0015200	2.5x2x0.55mm	FA-20H	12.000000MHz	10pF	+/-30ppm	+/-30ppm	-20to+75°C
Q24FA20H0015300	2.5x2x0.55mm	FA-20H	24.000000MHz	12pF	+/-10ppm	+/-15ppm	-30to+85°C
Q24FA20H0015500	2.5x2x0.55mm	FA-20H	27.000000MHz	8pF	+/-10ppm	+/-15ppm	-30to+85°C
Q24FA20H0015600	2.5x2x0.55mm	FA-20H	24.000000MHz	7pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0016600	2.5x2x0.55mm	FA-20H	25.000000MHz	18pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0016900	2.5x2x0.55mm	FA-20H	40.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0017200	2.5x2x0.55mm	FA-20H	25.000000MHz	20pF	+/-10ppm	+/-20ppm	-40to+85°C

Q24FA20H0017500	2.5x2x0.55mm	FA-20H	25.000000MHz	10pF	+/-30ppm	+/-30ppm	-20to+75°C
Q24FA20H0017600	2.5x2x0.55mm	FA-20H	20.000000MHz	9pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0019300	2.5x2x0.55mm	FA-20H	26.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q24FA20H0019600	2.5x2x0.55mm	FA-20H	32.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0020100	2.5x2x0.55mm	FA-20H	25.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0020200	2.5x2x0.55mm	FA-20H	25.000000MHz	14pF	+/-30ppm	+/-30ppm	-20to+75°C
Q24FA20H0020800	2.5x2x0.55mm	FA-20H	32.000000MHz	13pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0020900	2.5x2x0.55mm	FA-20H	40.000000MHz	9pF	+/-10ppm	+/-20ppm	-40to+85°C
Q24FA20H0021400	2.5x2x0.55mm	FA-20H	40.000000MHz	10pF	+/-10ppm	+/-20ppm	-40to+85°C
Q24FA20H0022300	2.5x2x0.55mm	FA-20H	30.000000MHz	12pF	+/-10ppm	+/-20ppm	-40to+85°C
Q24FA20H0022500	2.5x2x0.55mm	FA-20H	16.000000MHz	8pF	+/-10ppm	+/-12ppm	-20to+70°C
Q24FA20H0022800	2.5x2x0.55mm	FA-20H	16.000000MHz	10pF	+/-30ppm	+/-30ppm	-30to+85°C
Q24FA20H0022900	2.5x2x0.55mm	FA-20H	26.000000MHz	6pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0023200	2.5x2x0.55mm	FA-20H	16.000000MHz	12pF	+/-10ppm	+/-20ppm	-40to+85°C
Q24FA20H0023300	2.5x2x0.55mm	FA-20H	27.000000MHz	12pF	+/-10ppm	+/-12ppm	-20to+85°C
Q24FA20H0023800	2.5x2x0.55mm	FA-20H	27.000000MHz	12pF	+/-10ppm	+/-19ppm	-40to+85°C
Q24FA20H0024100	2.5x2x0.55mm	FA-20H	27.000000MHz	12pF	+/-30ppm	+/-50ppm	-20to+70°C
Q24FA20H0024200	2.5x2x0.55mm	FA-20H	24.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0024700	2.5x2x0.55mm	FA-20H	16.000000MHz	16pF	+/-10ppm	+/-30ppm	-40to+85°C
Q24FA20H0024900	2.5x2x0.55mm	FA-20H	24.000000MHz	7pF	+/-30ppm	+/-20ppm	-20to+70°C
Q24FA20H0025100	2.5x2x0.55mm	FA-20H	26.000000MHz	10pF	+/-25ppm	+/-25ppm	-20to+75°C
Q24FA20H0026000	2.5x2x0.55mm	FA-20H	32.000000MHz	10pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0026600	2.5x2x0.55mm	FA-20H	24.000000MHz	10pF	+/-30ppm	+/-30ppm	-40to+85°C
Q24FA20H0027000	2.5x2x0.55mm	FA-20H	24.000000MHz	10pF	+/-30ppm	+/-30ppm	-30to+85°C
Q24FA20H0027100	2.5x2x0.55mm	FA-20H	24.000000MHz	10pF	+/-20ppm	+/-14ppm	-30to+70°C
Q24FA20H0027200	2.5x2x0.55mm	FA-20H	25.000000MHz	18pF	+/-30ppm	+/-30ppm	-20to+70°C
Q24FA20H0027600	2.5x2x0.55mm	FA-20H	27.120000MHz	10pF	+/-15ppm	+/-15ppm	-20to+75°C
Q24FA20H0027900	2.5x2x0.55mm	FA-20H	26.000000MHz	12pF	+/-10ppm	+/-12ppm	-20to+70°C
Q24FA20H0028700	2.5x2x0.55mm	FA-20H	30.000000MHz	8pF	+/-10ppm	+/-10ppm	-20to+75°C
Q24FA20H0028900	2.5x2x0.55mm	FA-20H	26.000000MHz	9pF	+/-10ppm	+/-18ppm	-40to+85°C
Q24FA20H0029800	2.5x2x0.55mm	FA-20H	20.000000MHz	12pF	+/-10ppm	+/-10ppm	-20to+70°C
Q24FA20H0030800	2.5x2x0.55mm	FA-20H	16.000000MHz	9pF	+/-30ppm	+/-30ppm	-20to+75°C
Q24FA20H0031500	2.5x2x0.55mm	FA-20H	26.000000MHz	12pF	+/-10ppm	+/-18ppm	-40to+85°C
Q24FA20H0032100	2.5x2x0.55mm	FA-20H	27.120000MHz	10pF	+/-30ppm	+/-30ppm	-20to+75°C
Q24FA20H0032200	2.5x2x0.55mm	FA-20H	32.000000MHz	10pF	+/-15ppm	+/-15ppm	-30to+85°C
Q24FA20H0032500	2.5x2x0.55mm	FA-20H	24.576000MHz	18pF	+/-30ppm	+/-10ppm	-20to+70°C
Q24FA20H0032600	2.5x2x0.55mm	FA-20H	25.000000MHz	15pF	+/-20ppm	+/-30ppm	-20to+85°C
Q24FA20H0033100	2.5x2x0.55mm	FA-20H	16.000000MHz	12pF	+/-30ppm	+/-30ppm	-40to+85°C
Q24FA20H0033200	2.5x2x0.55mm	FA-20H	25.000000MHz	18pF	+/-30ppm	+/-30ppm	-20to+75°C

愛普生晶振編碼Q24FA20H0015000專用于移動電話應用,Q24FA20H0013700,無源晶振

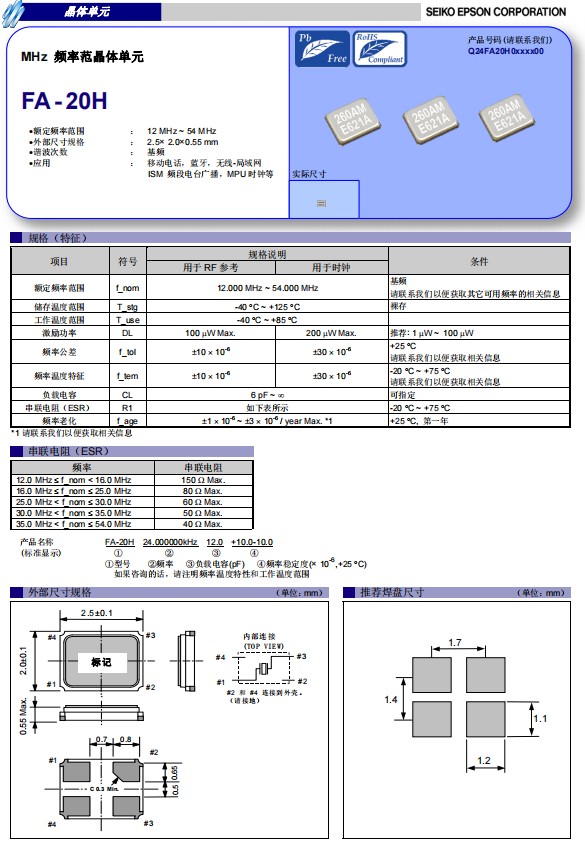

日本進口愛普生晶振熱銷型號FA-20H，是一款小體積晶振尺寸2.5x2.0mm無源晶振，石英晶體諧振器，四腳貼片晶振，頻率范圍12MHz至54MHz，可以在-40°C至+85°C的溫度內穩定工作，具有超小型，輕薄型，穩定性好，耐熱及耐環境特性，FA-20H石英晶體諧振器主要用于移動電話，智能手機，藍牙，無線-局域網，ISM頻段電臺廣播，MPU時鐘等，因此也有人使用手機晶振、藍牙晶振、時鐘晶振這種詞稱呼這類小尺寸貼片晶振。
