愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品.

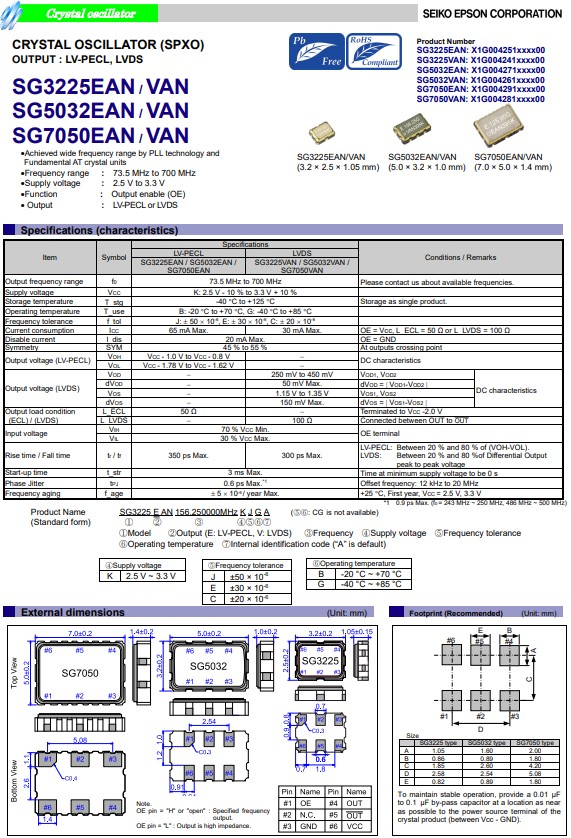

愛普生晶振SG3225VAN，是一款LVDS差分晶振，小體積尺寸3.2x2.5mm，六腳貼片晶振，有源晶體振蕩器，低電源電壓2.5V至3.3V，頻率范圍73.5MHz至700MHz任意一頻點，具有低電源電壓，滿足產品低消耗電流的特點，具有超小型，輕薄型，低抖動，低功耗，低耗能，低損耗等特點，能夠很容易地識別小信號,能夠從容精確地處理'雙極'信號,對外部電磁干擾（EMI）是高度免疫的。被廣泛應用于5G通訊設備、機頂盒、光端機、安防設備、路由器/交換機、儀器儀表、SATA，SAS，光纖通信，10G以太網及各種頻率控制設備上。
SG3225VAN晶振具有寬頻率范圍的LVDS差分晶振,X1G004241017100,石英晶體振蕩器

Product Number	貼片晶振	Frequency	LxWxH	Output Wave	Supply Voltage
X1G004241000100	SG3225VAN	125.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241000400	SG3225VAN	100.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241000500	SG3225VAN	200.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241000600	SG3225VAN	400.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241000800	SG3225VAN	212.500000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241001000	SG3225VAN	148.500000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241001200	SG3225VAN	150.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241001400	SG3225VAN	156.250000 MHz	3.20x2.50x1.20mm	LVDS差分晶振	2.250 to 3.630 V
X1G004241002000	SG3225VAN	125.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241002300	SG3225VAN	100.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241002400	SG3225VAN	200.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241002500	SG3225VAN	400.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V

X1G004241015800	SG3225VAN	243.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241016200	SG3225VAN	148.351648 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241016300	SG3225VAN	108.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241016400	SG3225VAN	148.351600 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241016500	SG3225VAN	625.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241016700	SG3225VAN	144.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241016900	SG3225VAN	415.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241017100	SG3225VAN	128.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241017200	SG3225VAN	128.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241017300	SG3225VAN	161.132812 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241017400	SG3225VAN	656.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241018000	SG3225VAN	657.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241018100	SG3225VAN	625.000000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V
X1G004241018400	SG3225VAN	148.350000 MHz	3.20x2.50x1.20mm	LVDS	2.250 to 3.630 V

SG3225VAN晶振具有寬頻率范圍的LVDS差分晶振,X1G004241017100,石英晶體振蕩器
差分晶振LVDS（Low Voltage Differential Signaling)它是一種低擺幅的差分信號技術，它使得信號能夠在差PCB線對或平衡電纜上以幾百的Mbps的速率傳輸，其低壓幅以及低電流驅動輸出實現了低噪聲以及低功耗。LVDS（Low Voltage Differential Signaling）是一種小振幅差分信號技術，LVDS信號傳輸一般由三部分組成：差分信號發送器，差分信號互聯器，差分信號接收器。
