- 產品型號：66749274
- 晶振頻率：32MHZ
- 晶振尺寸：1.6*1.2*0.4mm
- 產品應用： X1E0002510138FA-118T32MHZ1612mm-20~+70℃10ppm,尺寸為1612mm,頻率為32MHZ，工作溫度-20C~+70C,頻率公差10ppm,日本進口晶振，愛普生晶振，無源貼片晶振，石英晶體諧振器，石英晶體，水晶振動子，高品質晶振，通信模塊...
-
X1E0002510138 FA-118T 32MHZ 1612mm -20~+70℃ 10ppm
.JPG)
X1E0002510138 FA-118T 32MHZ 1612mm -20~+70℃ 10ppm,尺寸為1612mm,頻率為32MHZ，工作溫度-20°C~+70°C,頻率公差10ppm,日本進口晶振，愛普生晶振，無源貼片晶振，石英晶體諧振器，石英晶體，水晶振動子，高品質晶振，通信模塊專用晶振，可穿戴設備晶振，MCU時鐘晶振，X1E0002510144無源晶振，X1E0002510150諧振器。
無源晶振產品主要應用于消費和工業應用的小型通信模塊，可穿戴設備，MCU時鐘等領域。X1E0002510138 FA-118T 32MHZ 1612mm -20~+70℃ 10ppm.

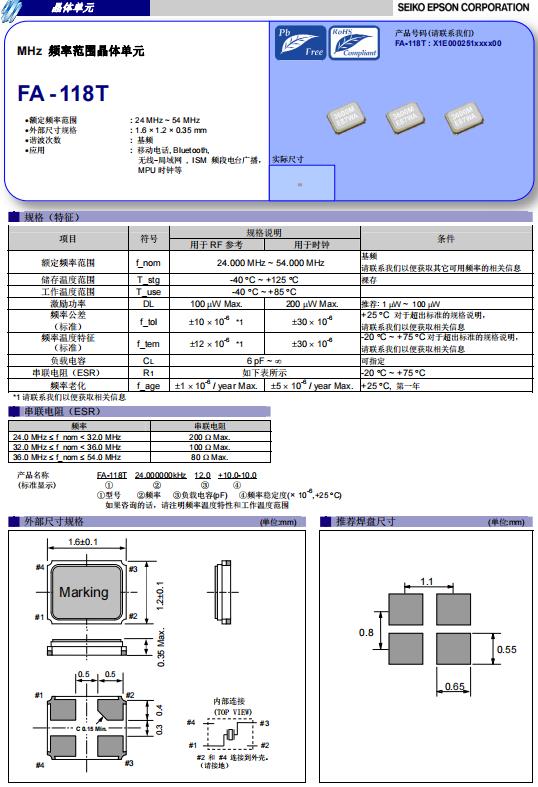

X1E0002510138 FA-118T 32MHZ 1612mm -20~+70℃ 10ppm 參數表
| Item | Symbol | Specifications | Unit | Condition / Remarks | |||||||||||||||||||||||||||
| Nominal frequency range | f_nom | 24.000 to 54.000 | MHz | ||||||||||||||||||||||||||||
|
Frequency tolerance (Standard) |
f_tol | ±10 / ±30 | x10-6 |
T_use = +25 °C ± 3 °C DL = 100 μW Does not include frequency aging Please contact Epson for requirements not listed in the specifications |
|||||||||||||||||||||||||||
|
Frequency vs. temperature characteristics (Standard) |
f_tem | ±12 / ±30 | x10-6 |
Reference at t_use = +25 °C ± 3 °C -20 °C to +75 °C Please contact Epson for requirements not listed in the specifications |
|||||||||||||||||||||||||||
| Load capacitance | CL | 6 to ? | pF | Please specify | |||||||||||||||||||||||||||
| Motional resistance (ESR) | R1 | Table 1. | Ω |
π circuit IEC 60444-2 T_use = Operating temperature range DL = 100 μW |
|||||||||||||||||||||||||||
| Shunt capacitance | C0 | 3.0 Max. | pF | ||||||||||||||||||||||||||||
| Frequency aging | f_age | ±1 Max. / ±5 Max. | x10-6 | T_use = +25 °C ± 3 °C | |||||||||||||||||||||||||||
| Item | Symbol | Rating value | Unit | Note | |||||||||||||||||||||||||||
| Min. | Typ. | Max. | |||||||||||||||||||||||||||||
| Storage temperature range | T_stg | --40 | - | +125 | °C |
Satisfy environmental characteristics specifications |
|||||||||||||||||||||||||
| Item | Symbol | Rating value | Unit | Note | |||||||||||||||||||||||||||
| Min. | Typ. | Max. | |||||||||||||||||||||||||||||
| Operating temperature range | T_use | --40 | - | +85 | °C | ||||||||||||||||||||||||||
| --40 | - | +105 | Please contact Epson | ||||||||||||||||||||||||||||
| Level of drive | DL | 1 | 200 | μW | Recommended: 10 μW | ||||||||||||||||||||||||||

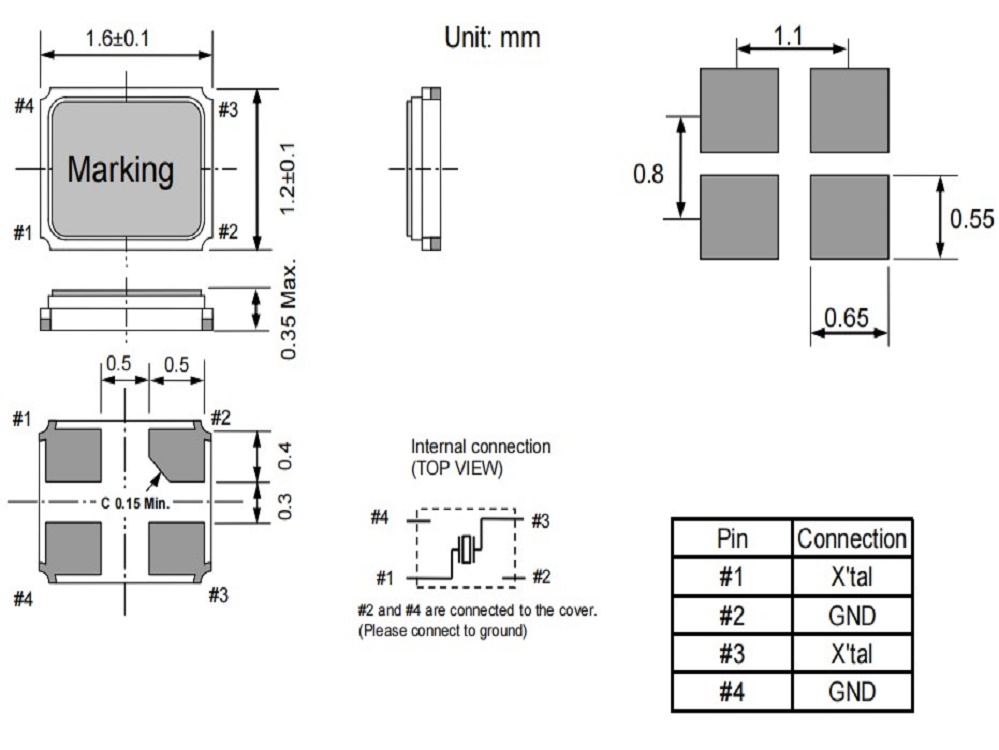

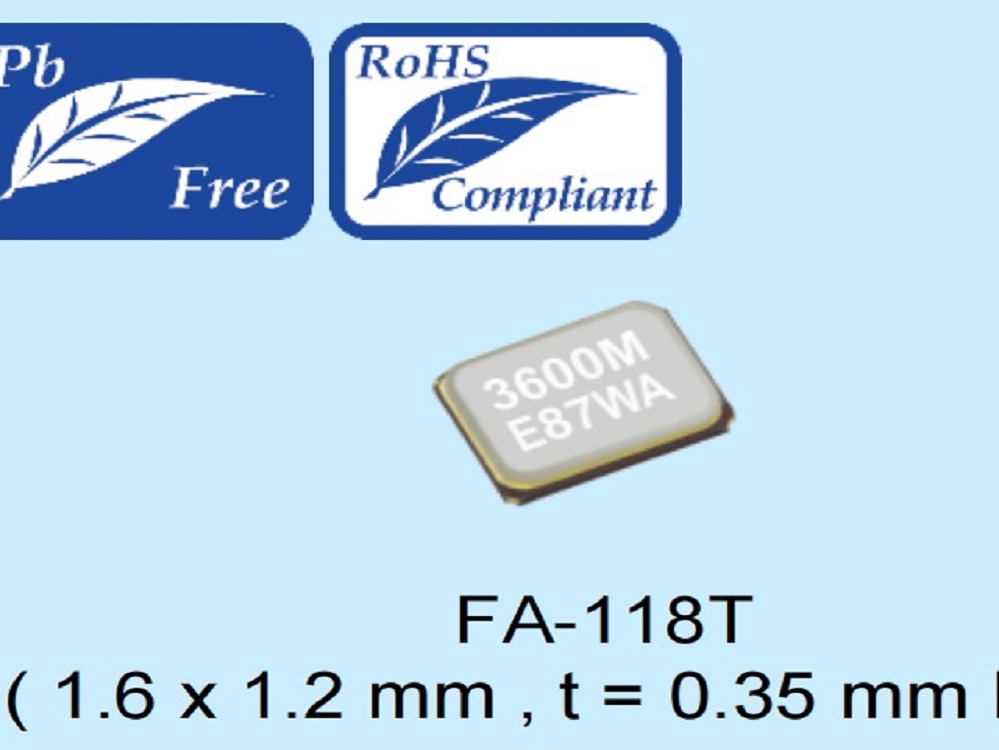

•包裝尺寸:1.6x1.2mm, t =0.35mmMax。
•頻率范圍:24mhz~54mhz
•頻率公差(標準):±10 x10-6/±30x10-6(@+25°C)
•頻率與溫度特性(標準):
±12x10-6(-20°C至+75°C)
±30×10-6(-20°C至+75°C)
•ESR: 200Ω最大。(24MHz<f_nom<32MHz)
100ΩMax。(32MHz<f_nom<36MHz)
80ΩMax。(36MHz<f_nom<54MHz)
訂購產品時請注明型號名稱、頻率和規格編號。
有關規格的更多問題，請隨時與我們聯系。
微信：13824306246 QQ:794113422 郵箱：taiheth@163.com 座機:0755-27872782
更多相關EPSON愛普生石英晶振型號
有關規格的更多問題，請隨時與我們聯系。
微信：13824306246 QQ:794113422 郵箱：taiheth@163.com 座機:0755-27872782
更多相關EPSON愛普生石英晶振型號
| 編碼 | 尺寸 | 型號 | 頻率 | 負載 | 頻率 @+25°C | 工作溫度 |
| X1E0002510093 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-30 ppm | -20 to +70 °C |
| X1E0002510100 | 1.6 x 1.2 x 0.35mm | FA-118T | 27.120000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510102 | 1.6 x 1.2 x 0.35mm | FA-118T | 50.000000 MHz | 8 pF | +/-30 ppm | -40 to +85 °C |
| X1E0002510104 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 10 pF | +/-20 ppm | -40 to +85 °C |
| X1E0002510110 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 12.5 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510111 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 10 pF | +/-50 ppm | -20 to +75 °C |
| X1E0002510113 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 8 pF | +/-10 ppm | -30 to +85 °C |
| X1E0002510121 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-10 ppm | -20 to +85 °C |
| X1E0002510123 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510126 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 7 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510136 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-15 ppm | -20 to +105 °C |
| X1E0002510138 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 6 pF | +/-10 ppm | -20 to +70 °C |
| X1E0002510141 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 8 pF | +/-20 ppm | -40 to +85 °C |
| X1E0002510144 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 20 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510145 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 20 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510148 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510150 | 1.6 x 1.2 x 0.35mm | FA-118T | 38.400000 MHz | 20 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510152 | 1.6 x 1.2 x 0.35mm | FA-118T | 48.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510153 | 1.6 x 1.2 x 0.35mm | FA-118T | 24.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510154 | 1.6 x 1.2 x 0.35mm | FA-118T | 50.000000 MHz | 12 pF | +/-30 ppm | -40 to +85 °C |
| X1E0002510155 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 9 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510157 | 1.6 x 1.2 x 0.35mm | FA-118T | 26.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510158 | 1.6 x 1.2 x 0.35mm | FA-118T無源石英晶體 | 50.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510159 | 1.6 x 1.2 x 0.35mm | FA-118T | 48.000000 MHz | 8 pF | +/-15 ppm | -40 to +85 °C |
| X1E0002510160 | 1.6 x 1.2 x 0.35mm | FA-118T | 30.000000 MHz | 4 pF | +/-70 ppm | -40 to +85 °C |
| X1E0002510161 | 1.6 x 1.2 x 0.35mm | FA-118T | 37.400000 MHz | 8 pF | +/-10 ppm | -30 to +85 °C |
| X1E0002510166 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 10 pF | +/-10 ppm | -30 to +85 °C |
| X1E0002510169 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 10 pF | +/-50 ppm | -40 to +85 °C |
| X1E0002510033 | 1.6 x 1.2 x 0.35mm | FA-118T | 25.000000 MHz | 10 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510065 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510099 | 1.6 x 1.2 x 0.35mm | FA-118T | 48.000000 MHz | 6 pF | +/-30 ppm | -20 to +75 °C |
| X1E0002510134 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 8 pF | +/-10 ppm | -20 to +85 °C |
| X1E0002510190 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 12 pF | +/-10 ppm | -30 to +85 °C |
| X1E0002510197 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 6 pF | +/-10 ppm | -20 to +75 °C |
| X1E0002510201 | 1.6 x 1.2 x 0.35mm | FA-118T | 38.400000 MHz | 8 pF | +/-10 ppm | -20 to +85 °C |
| X1E0002510212 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 6 pF | +/-10 ppm | -40 to +85 °C |
| X1E0002510215 | 1.6 x 1.2 x 0.35mm | FA-118T | 32.000000 MHz | 6 pF | +/-20 ppm | -40 to +85 °C |
| X1E0002510219 | 1.6 x 1.2 x 0.35mm | FA-118T | 40.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
